Assembled aluminum conduit body, 1 inch, LL
Category: Assembled Conduit Bodies.
Application: Conduit bodies provide access to conductors for wire pulling, splicing and maintenance.
Material: Die-cast aluminum.
Mechanical: Threaded, set-screw or combination threaded / set-screw assembled with steel cover and neoprene gasket.
Additional Information
Product Type: Conduit Bodies
| STYLE | CAT. NO. / UPC | Type |
|---|---|---|
| Assembled Conduit Body |
12813 UPC UPC 095327128131 |
Threaded for Rigid and IMC |
| Assembled Conduit Body |
12863 UPC UPC 095327128636 |
Set-Screw for EMT |
| Assembled Conduit Body |
14813 UPC UPC 095327148139 |
Combination Threaded/Set-Screw for Rigid and EMT |
Assembled Conduit Bodies
Application: Conduit bodies can be attached to either Rigid conduit, IMC or EMT when it is necessary to correct or change the direction of conduit runs. They provide access to conductors when wire pulling, splicing or for maintenance.
Material: Die-cast aluminum.
Mechanical:
Type: Threaded
Hub Size: 1 inch
Configuration: LL
Packaging:
Box Quantity: 5 pcs.
Carton Quantity: 25 pcs.
Product Features:
- Die-cast from high strength, corrosion and weather resistant aluminum alloy.
- Pre-assembled with steel cover and neoprence rubber gasket.
- Smooth, tapered NPT threaded hubs.
- Combination screws; nickel plated.
- Flat back design alloys easy mounting close to walls.

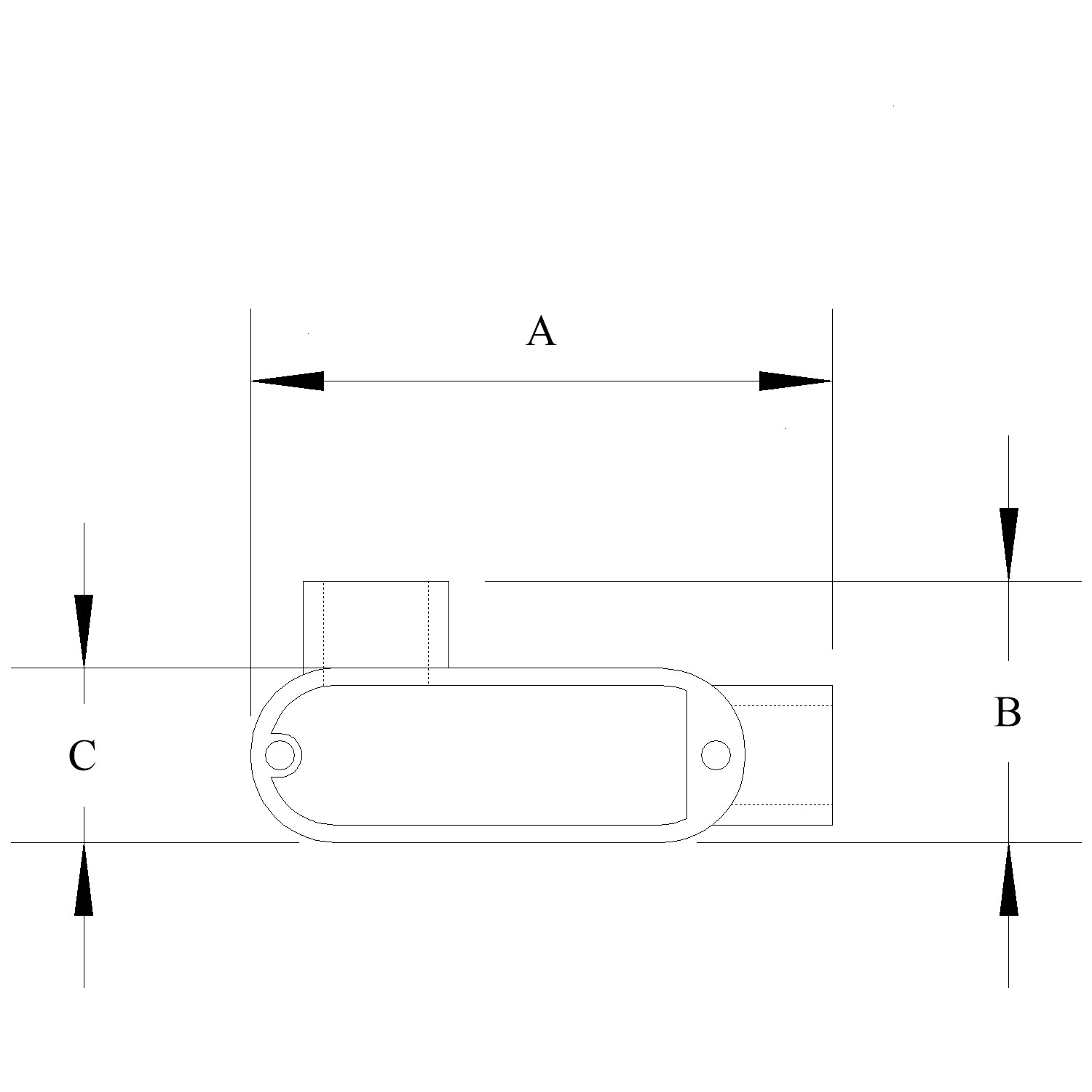

Dimensions
| Size | A | B | C |
|---|---|---|---|
| 1 in. | 5.80 in. | 2.44 in. | 1.90 in. |
