1-Gang Weatherproof Box with Five 1/2 inch outlets – 2 in each end, 1 in back
Category: Weatherproof boxes
Application: For use in branch circuit wiring in wet, damp or dry locations.May be used as a weatherproof junction box or as a housing for various devices.
Material: Die-cast aluminum, .094 inches thick
Additional Information
Product Type: Weatherproof Boxes
| FINISH | CAT. NO. / UPC |
|---|---|
| Gray without attached mounting lugs |
30213 UPC UPC 095327302135 |
| White without attached mounting lugs |
30213W UPC UPC 095327310550 |
| Bronze without attached mounting lugs |
30213Z UPC UPC 095327310543 |
| Gray with attached mounting lugs |
30215 UPC UPC 095327302159 |
| White with attached mounting lugs |
30215W UPC UPC 095327310574 |
| Bronze with attached mounting lugs |
30215Z UPC UPC 095327310581 |
Category: Weatherproof boxes
Application: For use in branch circuit wiring in wet, damp or dry locations. May be used as a weatherproof junction box or as a housing for various devices.
Material: Die-cast aluminum, .094 inches thick
Gang: 1

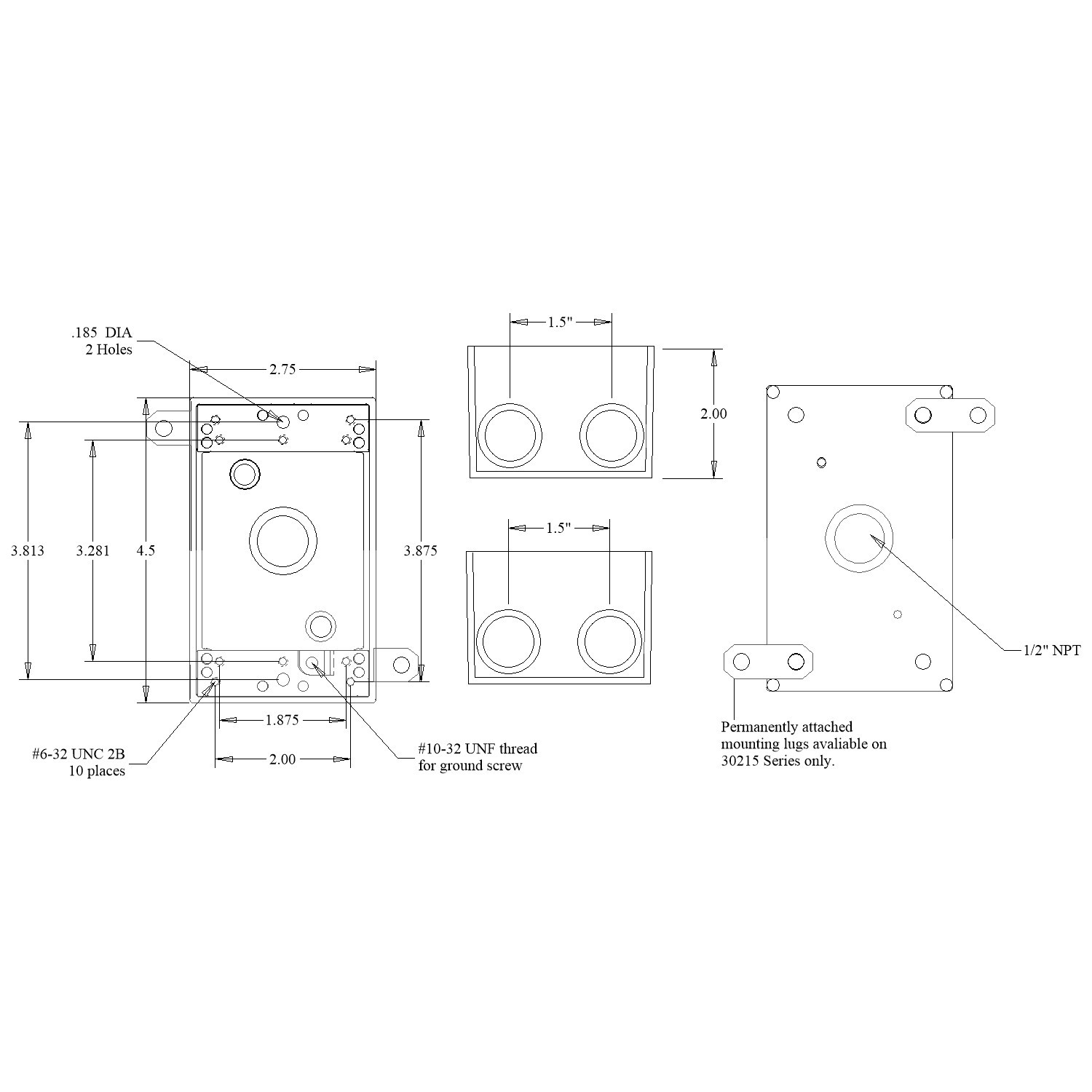

Dimensions: 2.75 inches wide x 4.5 inches high x 2 inches deep
Number of Outlets: (5) five threaded outlets
Hub Size: 1/2 inch
Outlet Locations: 2 in each end, 1 in back
Cubic Capacity: 18 inches
Finishes: State-of-the-art powder coat paint finish. Available in gray, white or bronze.
Applicable Standards : UL Standard 514A, NEMA 3R Rated
Certification: UL Listed
Product Features:
- Permanently attached lugs rotate for maximum versatility (30215 Series only).
- Heavy-duty mounting straps exceed all applicable UL pull-tests.
- Easy access ground screw hole located along the surface of the mounting strap.
- Superior powder coat paint finish assures maximum weatherability and scratch resistance.
- Ground screw and closure plugs included.
- Manufactured in the USA.
Packaging: Individually packaged (shrink wrapped and bar coded)
Box Quantity: 25 pcs.
