Unassembled aluminum conduit body, 1 inch, TB
Category: Unassembled conduit bodies.
Application: Conduit bodies provide access to conductors for wire pulling, splicing and maintenance.
Material: Die-cast aluminum.
Mechanical: Unassembled threaded conduit body.
Additional Information
Product Type: Conduit Bodies
| STYLE | CAT. NO. / UPC | Type |
|---|---|---|
| Unassembled Conduit Body |
11923 UPC UPC 095327119238 |
Threaded for Rigid and IMC |
Unassembled Conduit Bodies
Application: Conduit bodies can be attached to either Rigid conduit or IMC when it is necessary to correct or change the direction of conduit runs. They provide access to conductors when wire pulling, splicing or for maintenance.
Material: Die-cast aluminum.
Mechanical:
Type: Threaded
Hub Size: 1 inch
Configuration: TB
Internal Volume: 12.2 cubic inches
Maximum Wire Size: 3 #4 AWG
Packaging:
Box Quantity: 5 pcs.
Carton Quantity: 25 pcs.
Product Features:
- Die-cast from high strength, corrosion and weather resistant aluminum alloy.
- Smooth, tapered NPT threaded hubs.

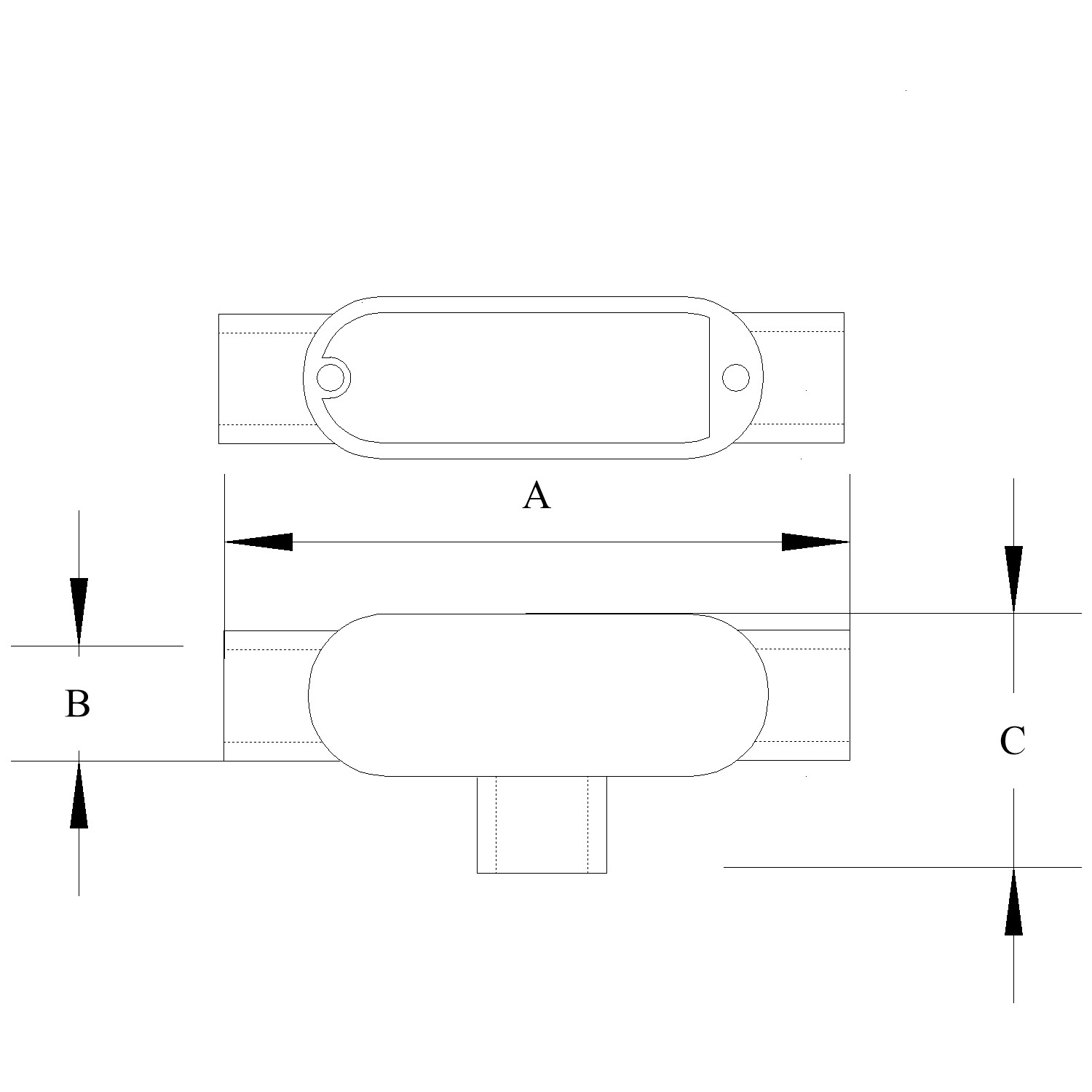

Dimensions
| Size | A | B | C |
|---|---|---|---|
| 1 in. | 6.44 in. | 2.63 in. | 2.13 in. |
