Unassembled malleable iron conduit body, 3/4 inch, T
Category: Unassembed conduit bodies
Application: Conduit bodies provide access to conductors for wire pulling, splicing and maintenance.
Material: Malleable iron; zinc plated.
Mechanical: Type: Threaded, unassembled or assembled with steel cover and neoprene gasket
Additional Information
Product Type: Conduit Bodies
STYLE | CAT. NO. / UPC | Type |
---|---|---|
Unassembed Conduit Body |
17842 UPC UPC 095327178426 |
Threaded for Rigid and IMC |
Unassembed conduit bodies
Application: Conduit bodies can be attached to either Rigid conduit or IMC when it is necessary to correct or change the direction of conduit runs. They provide access to conductors when wire pulling, splicing or for maintenance.
Material: Malleable iron; zinc plated.
Mechanical:
Type: Threaded.
Hub Size: 3/4 inch
Configuration: T
Internal Volume: 9.5 cubic inches
Maximum Wire Size: #6 AWG
Packaging:
Box Quantity: 10 pcs.
Carton Quantity: 50 pcs.
Product Features:
- Cast from high strength malleable iron; zinc plated.
- Smooth, tapered NPT threaded hubs.
- Suitable for use in concrete.

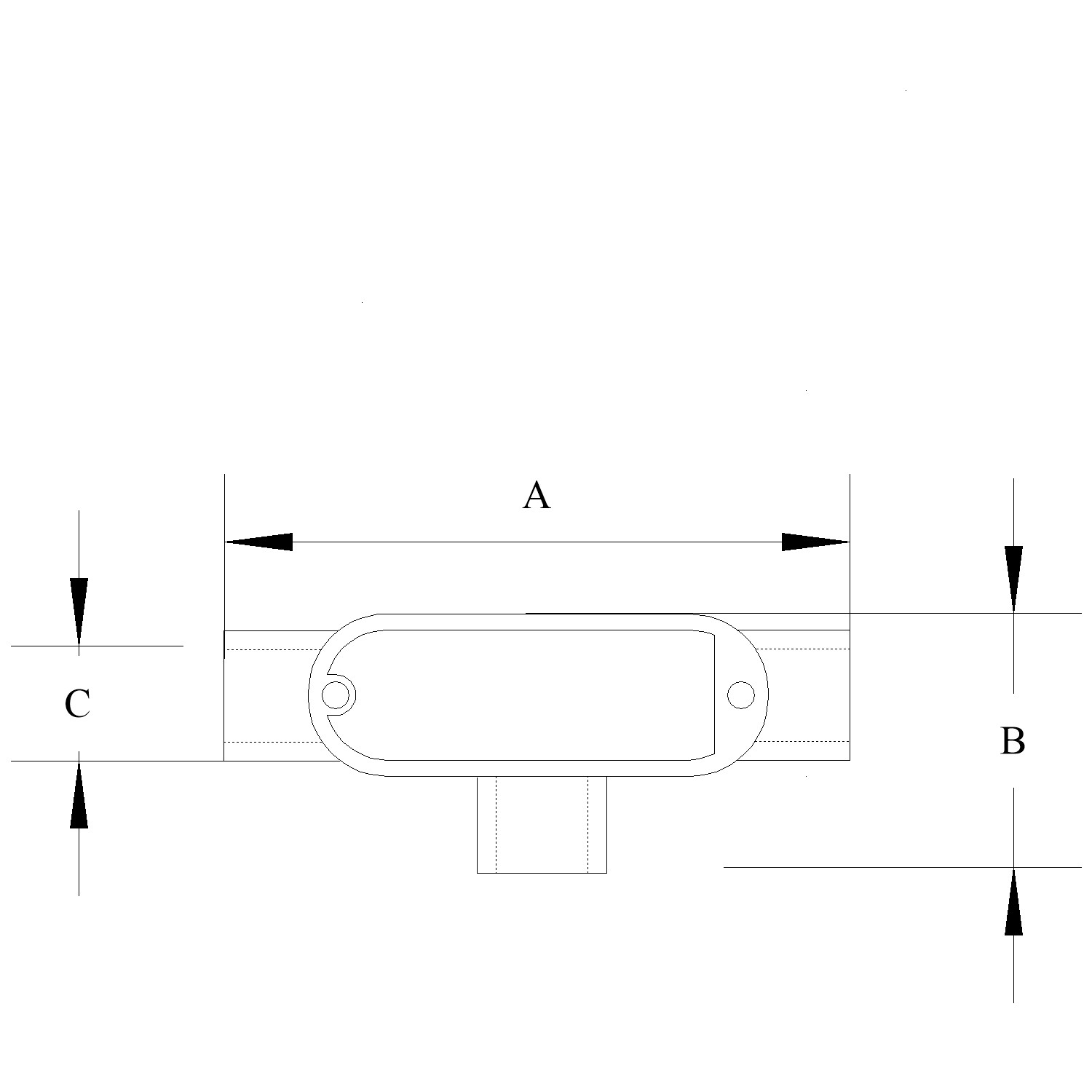

Dimensions
Size | A | B | C |
---|---|---|---|
3/4 in. | 6.00 in. | 2.25 in. | 1.50 in. |
