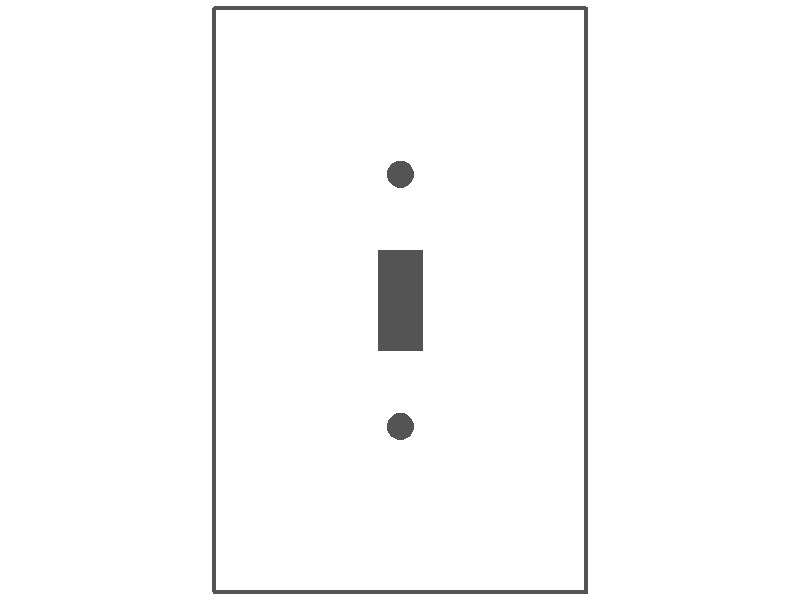

1-gang toggle, oversize, metallic finish wallplate
Gang: 1
Size: Oversize (5.5 in. high x 3.50 in. wide)
Opening: Toggle
Mounting: Device (2.375 in. between mounting holes)
Additional Information
Product Type: Wallplates
| FINISH | CAT. NO. / UPC |
|---|---|
| Chrome Plate Mirror |
83871 95327838719.0 |
| Stainless Steel-Type 304-Satin |
93871 95327938716.0 |
| Satin Brass |
94871 95327948715.0 |
| Anodized Aluminum-Clear |
95871 95327958714.0 |
| Stainless Steel-Type 430-Satin |
97871 95327978712.0 |
| Polished Brass-Mirror |
64871 95327648714.0 |
Material:
Type 304 Stainless Steel: Satin finish, non-magnetic, .030 inches thick. This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass and Satin Brass--each measuring .040 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.
Mechanical:
Gang: 1
Size: Oversize (5.5 in. high x 3.50 in. wide)
Size / Shape: Standard
Opening: Toggle
Mounting: Device (2.375 in. between mounting holes) Standards:
Applicable Standards: UL 514D
Certification: UL Listed
Product Features:
Type 304 Stainless Steel: Satin finish, non-magnetic, .030 inches thick. This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass and Satin Brass--each measuring .040 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.
Mechanical:
Gang: 1
Size: Oversize (5.5 in. high x 3.50 in. wide)
Size / Shape: Standard
Opening: Toggle
Mounting: Device (2.375 in. between mounting holes) Standards:
Applicable Standards: UL 514D
Certification: UL Listed
Available in a choice of (6) six finishes in stainless steel, brass, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.
Product Features:
- Ideal for residential, commercial and institutional applications.
- Oversize wallplates can be used to cover wall surface irregularities--a full inch taller than standard size and wider, as well.
- Smooth, rounded edges prevent wall damage.
- Add elegance to any room in your home or office.
- Made in the U.S.A.
