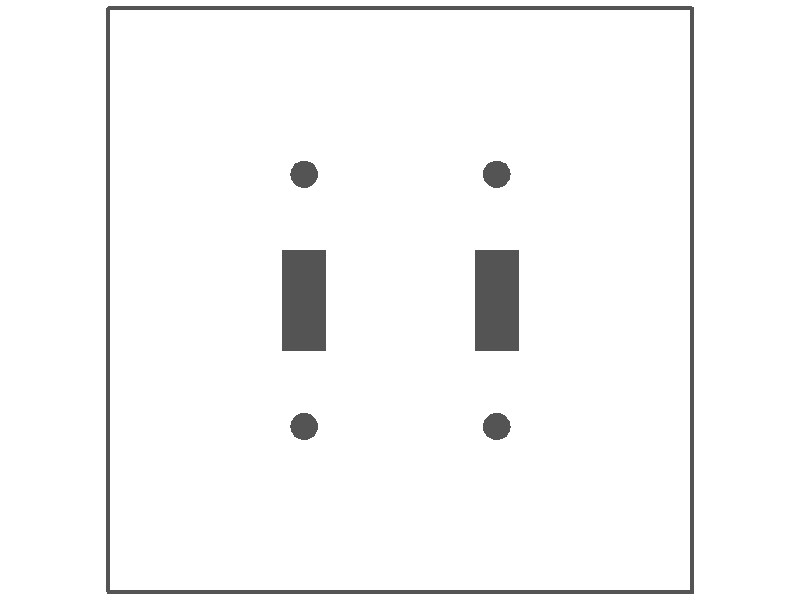

2-gang (2) toggle, oversize, metallic finish wallplate

Gang: 2
Size: Oversize (5.5 in. high x 5.50 in. wide)
Opening: (2) toggle
Mounting: Device (2.375 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
Chrome Plate Mirror
83872
95327838726.0
Stainless Steel-Type 304-Satin
93872
95327938723.0
Satin Brass
94872
95327948722.0
Anodized Aluminum-Clear
95872
95327958721.0
Stainless Steel-Type 430-Satin
97872
95327978729.0
Polished Brass-Mirror
64872
95327648721.0

Material:

Type 304 Stainless Steel: Satin finish, non-magnetic, .030 inches thick. This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass and Satin Brass–each measuring .040 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Aluminum: Made of anodized aluminum, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 2
Size: Oversize (5.5 in. high x 5.50 in. wide)
Size / Shape: Standard
Opening: (2) toggle
Mounting: Device (2.375 in. between mounting holes)

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (6) six finishes in stainless steel, brass, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential, commercial and institutional applications.
  • Oversize wallplates can be used to cover wall surface irregularities–a full inch taller than standard size and wider, as well.
  • Smooth, rounded edges prevent wall damage.
  • Add elegance to any room in your home or office.
  • Made in the U.S.A.

Box Quantity: 10
