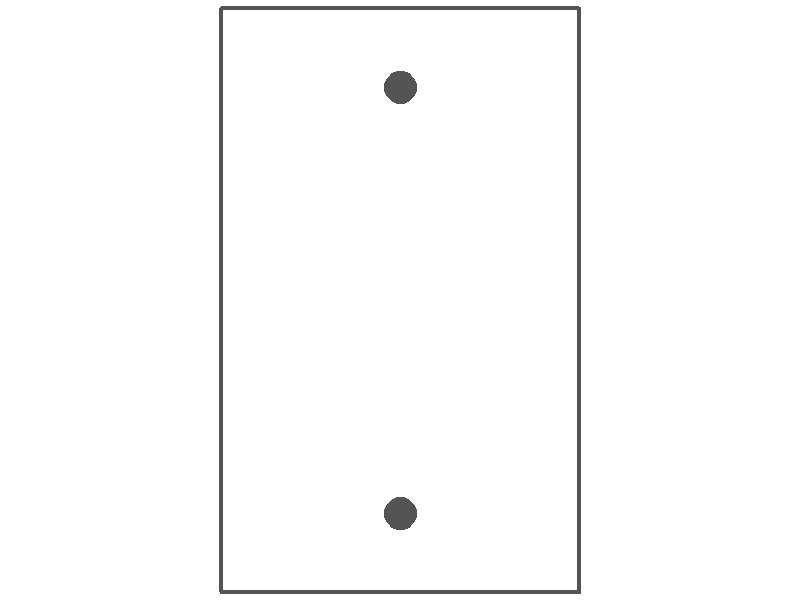

1-gang blank, standard size, metallic finish wallplate

Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Opening: Blank
Mounting: Box (3.281 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
Chrome Plate Mirror
83151
95327831512.0
Anodized Aluminum-Clear
95151
95327951517.0
Stainless Steel-Type 304-Satin
93151
95327931519.0
Stainless Steel-Type 304-Mirror
68151
95327681513.0
Stainless Steel-Type 304-Satin (.060 in.)
70151
95327701518.0
Stainless Steel-Type 430-Satin
97151
95327971515.0
Statuary Bronze-Dark
69151
95327691512.0
Bank Bronze-Medium
65151
95327651516.0
Satin Brass
94151
95327941518.0
Satin Brass (.060 in.)
96151
95327961516.0
Satin Bronze
66151
95327661515.0
Polished Brass-Mirror
64151
95327641517.0

Material:

Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Size / Shape: Standard
Opening: Blank
Mounting: Box (3.281 in. between mounting holes)

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential, commercial and institutional applications.
  • Smooth, rounded edges prevent wall damage.
  • Add elegance to any room in your home or office.
  • Can be silk-screened or engraved.
  • Made in the U.S.A.

Box Quantity: 25
