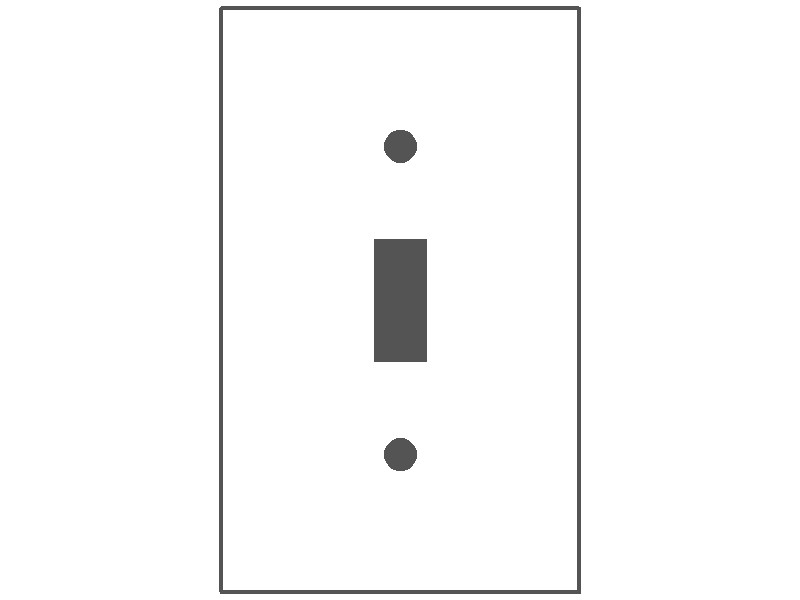

1-gang toggle, standard size, metallic finish wallplate

Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Opening: Toggle
Mounting: Device (2.375 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
Chrome Plate Mirror
83071
95327830713.0
Anodized Aluminum-Clear
95071
95327950718.0
Stainless Steel-Type 304-Satin
93071
95327930710.0
Stainless Steel-Type 304-Mirror
68071
95327680714.0
Stainless Steel-Type 304-Satin (.060 in.)
70071
95327700719.0
Stainless Steel-Type 430-Satin
97071
95327970716.0
Statuary Bronze-Dark
69071
95327690713.0
Bank Bronze-Medium
65071
95327650717.0
Satin Brass
94071
95327940719.0
Satin Brass (.060 in.)
96071
95327960717.0
Satin Bronze
66071
95327660716.0
Polished Brass-Mirror
64071
95327640718.0

Material:

Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Size / Shape: Standard
Opening: Toggle
Mounting: Device (2.375 in. between mounting holes)

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential, commercial and institutional applications.
  • Smooth, rounded edges prevent wall damage.
  • Add elegance to any room in your home or office.
  • Can be silk-screened or engraved.
  • Made in the U.S.A.

Box Quantity: 25
