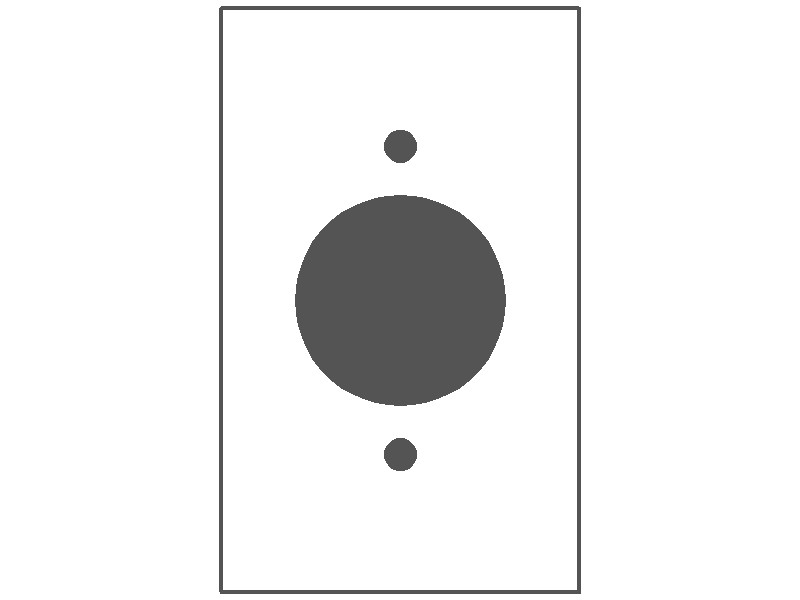

1-gang with 20A TL round receptacle opening (1.620 in. ID), standard size, metallic finish wallplate

Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Opening: 20 amp TL receptacle opening (1.620 in. ID hole)
Mounting: Device


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
Chrome Plate Mirror
83111
95327831116.0
Anodized Aluminum-Clear
95111
95327951111.0
Stainless Steel-Type 304-Satin
93111
95327931113.0
Stainless Steel-Type 304-Mirror
68111
95327681117.0
Stainless Steel-Type 304-Satin (.060 in.)
70111
95327701112.0
Stainless Steel-Type 430-Satin
97111
95327971119.0
Statuary Bronze-Dark
69111
95327691116.0
Bank Bronze-Medium
65111
95327651110.0
Satin Brass
94111
95327941112.0
Satin Brass (.060 in.)
96111
95327961110.0
Satin Bronze
66111
95327661119.0
Polished Brass-Mirror
64111
95327641111.0

Material:

Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Size / Shape: Standard
Opening: 20 amp TL receptacle opening (1.620 in. ID hole)
Mounting: Device

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential, commercial and institutional applications.
  • Smooth, rounded edges prevent wall damage.
  • Add elegance to any room in your home or office.
  • Can be silk-screened or engraved.
  • Made in the U.S.A.

Box Quantity: 25
