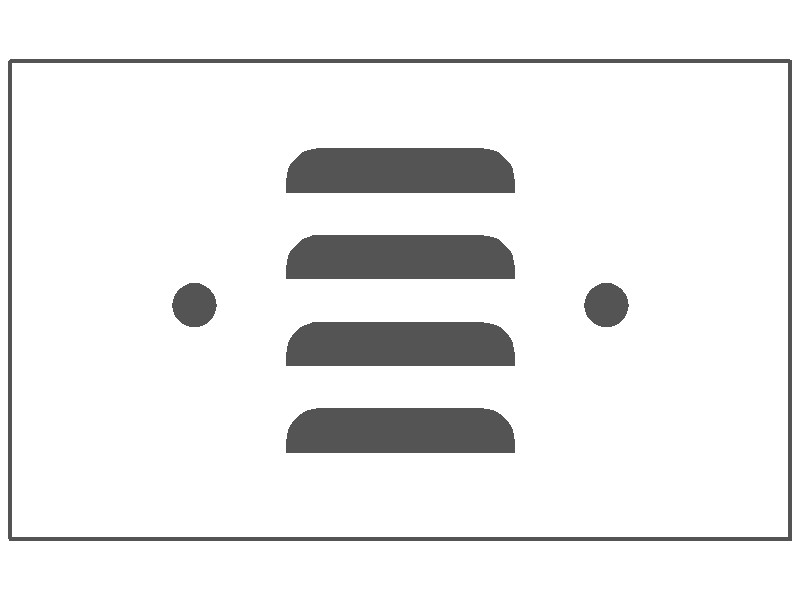

1-gang with louver opening; horizontal position, standard size, metallic finish wallplate

Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Opening: Louver opening; horizontal position
Mounting: Device (2.375 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
Chrome Plate Mirror
83630
95327836302.0
Anodized Aluminum-Clear
95630
95327956307.0
Stainless Steel-Type 304-Satin
93630
95327936309.0
Stainless Steel-Type 304-Mirror
68630
95327686303.0
Stainless Steel-Type 430-Satin
97630
95327976305.0
Statuary Bronze-Dark
69630
95327696302.0
Bank Bronze-Medium
65630
95327656306.0
Satin Brass
94630
95327946308.0
Satin Bronze
66630
95327666305.0
Polished Brass-Mirror
64630
95327646307.0

Material:

Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick. This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass and in Satin Brass–each measuring .040 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Size / Shape: Standard
Opening: Louver opening; horizontal position
Mounting: Device (2.375 in. between mounting holes)

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (10) ten finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential, commercial and institutional applications.
  • Smooth, rounded edges prevent wall damage.
  • Add elegance to any room in your home or office.
  • Can be silk-screened or engraved.
  • Made in the U.S.A.

Box Quantity: 15
