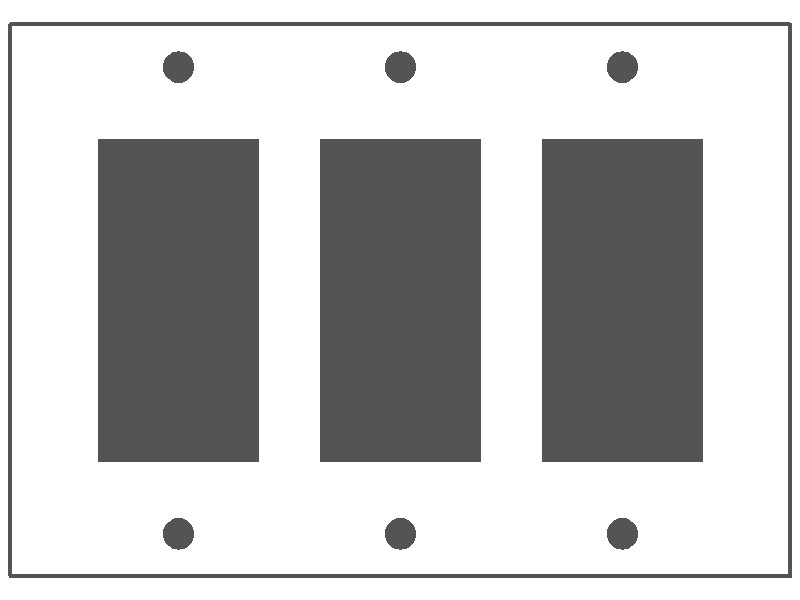

3-gang GFI, standard size, metallic finish wallplate

Gang: 3
Size: Standard (4.5 in. high x 6.375 in. wide)
Opening: (3) Block Duplex / GFI
Mounting: Device (3.812 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
Chrome Plate Mirror
83403
95327834032.0
Anodized Aluminum-Clear
95403
95327954037.0
Stainless Steel-Type 304-Satin
93403
95327934039.0
Stainless Steel-Type 304-Mirror
68403
95327684033.0
Stainless Steel-Type 304-Satin (.060 in.)
70403
95327704038.0
Stainless Steel-Type 430-Satin
97403
95327974035.0
Statuary Bronze-Dark
69403
95327694032.0
Bank Bronze-Medium
65403
95327654036.0
Satin Brass
94403
95327944038.0
Satin Brass (.060 in.)
96403
95327964036.0
Satin Bronze
66403
95327664035.0
Polished Brass-Mirror
64403
95327644037.0

Material:

Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 3
Size: Standard (4.5 in. high x 6.375 in. wide)
Size / Shape: Standard
Opening: (3) Block Duplex / GFI
Mounting: Device (3.812 in. between mounting holes)

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 5/16 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential, commercial and institutional applications.
  • Smooth, rounded edges prevent wall damage.
  • Add elegance to any room in your home or office.
  • Can be silk-screened or engraved.
  • Made in the U.S.A.

Box Quantity: 10
