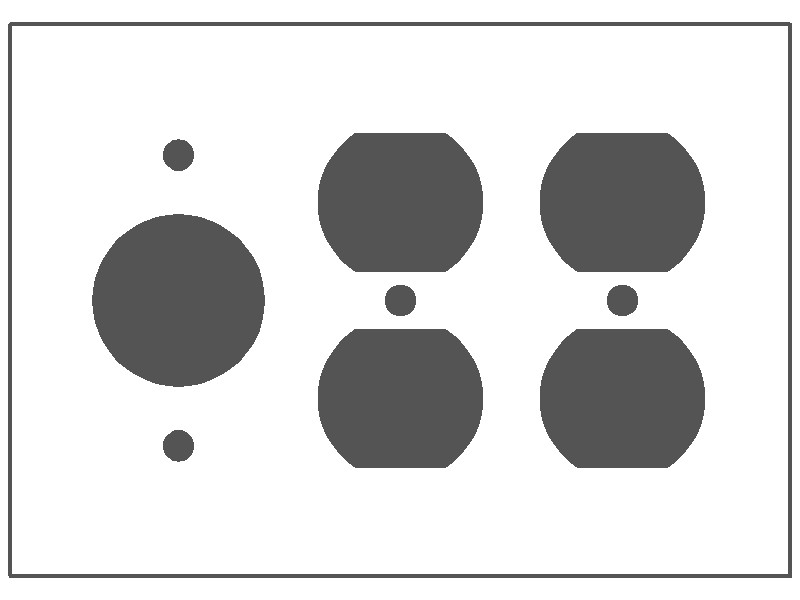

3-gang with (1) single receptacle (1.405 in. ID) (2) duplex, standard size, metallic finish wallplate
Gang: 3
Size: Standard (4.5 in. high x 6.375 in. wide)
Opening: (1) single receptacle (1.405 in. ID) and (2) duplex openings
Mounting: (Single Receptacle) device mounting (2.375 in. between mounting holes) / (2 Duplex) device mounting
Additional Information
Product Type: Wallplates
| FINISH | CAT. NO. / UPC |
|---|---|
| Chrome Plate Mirror |
83593 95327835930.0 |
| Anodized Aluminum-Clear |
95593 95327955935.0 |
| Stainless Steel-Type 304-Satin |
93593 95327935937.0 |
| Stainless Steel-Type 304-Mirror |
68593 95327685931.0 |
| Stainless Steel-Type 304-Satin (.060 in.) |
70593 95327705936.0 |
| Stainless Steel-Type 430-Satin |
97593 95327975933.0 |
| Statuary Bronze-Dark |
69593 95327695930.0 |
| Bank Bronze-Medium |
65593 95327655934.0 |
| Satin Brass |
94593 95327945936.0 |
| Satin Brass (.060 in.) |
96593 95327965934.0 |
| Satin Bronze |
66593 95327665933.0 |
| Polished Brass-Mirror |
64593 95327645935.0 |
Material:
Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.
Mechanical:
Gang: 3
Size: Standard (4.5 in. high x 6.375 in. wide)
Size / Shape: Standard
Opening: (1) single receptacle (1.405 in. ID) and (2) duplex openings
Mounting: (Single Receptacle) device mounting (2.375 in. between mounting holes) / (2 Duplex) device mounting
Standards:
Applicable Standards: UL 514D
Certification: UL Listed
Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.
Product Features:
- Ideal for residential, commercial and institutional applications.
- Smooth, rounded edges prevent wall damage.
- Add elegance to any room in your home or office.
- Can be silk-screened or engraved.
- Made in the U.S.A.
Box Quantity: 10
