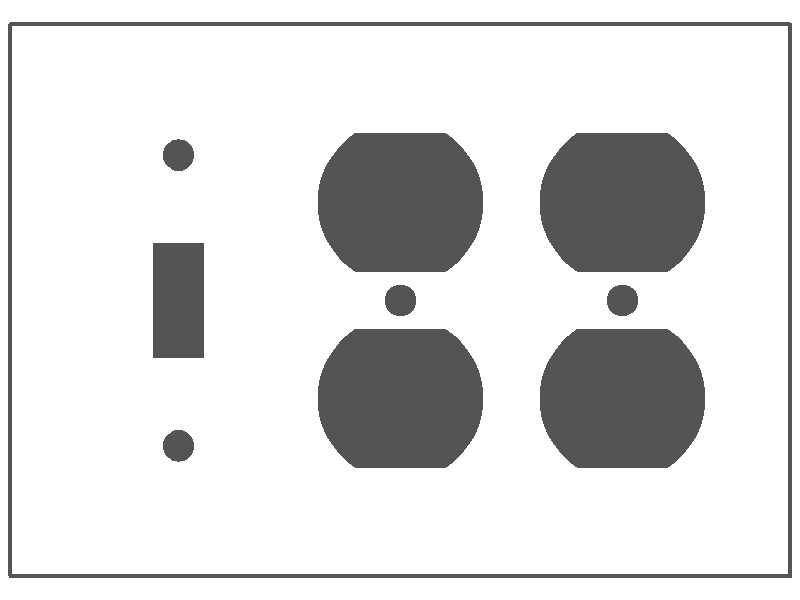

3-gang with (1) toggle / (2) duplex, standard size, metallic finish wallplate

Gang: 3
Size: Standard (4.5 in. high x 6.375 in. wide)
Opening: (1) toggle opening and (2) duplex openings
Mounting: (Toggle) device mounting ( 2.375 in. between mounting holes) / (2 Duplex) device mounting


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
Chrome Plate Mirror
83553
95327835534.0
Anodized Aluminum-Clear
95553
95327955539.0
Stainless Steel-Type 304-Satin
93553
95327935531.0
Stainless Steel-Type 304-Mirror
68553
95327685535.0
Stainless Steel-Type 304-Satin (.060 in.)
70553
95327705537.0
Stainless Steel-Type 430-Satin
97553
95327975537.0
Statuary Bronze-Dark
69553
95327695534.0
Bank Bronze-Medium
65553
95327655538.0
Satin Brass
94553
95327945530.0
Satin Brass (.060 in.)
96553
95327965538.0
Satin Bronze
66553
95327665537.0
Polished Brass-Mirror
64553
95327645531.0

Material:

Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 3
Size: Standard (4.5 in. high x 6.375 in. wide)
Size / Shape: Standard
Opening: (1) toggle opening and (2) duplex openings
Mounting: (Toggle) device mounting ( 2.375 in. between mounting holes) / (2 Duplex) device mounting

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential, commercial and institutional applications.
  • Smooth, rounded edges prevent wall damage.
  • Add elegance to any room in your home or office.
  • Can be silk-screened or engraved.
  • Made in the U.S.A.

Box Quantity: 10
