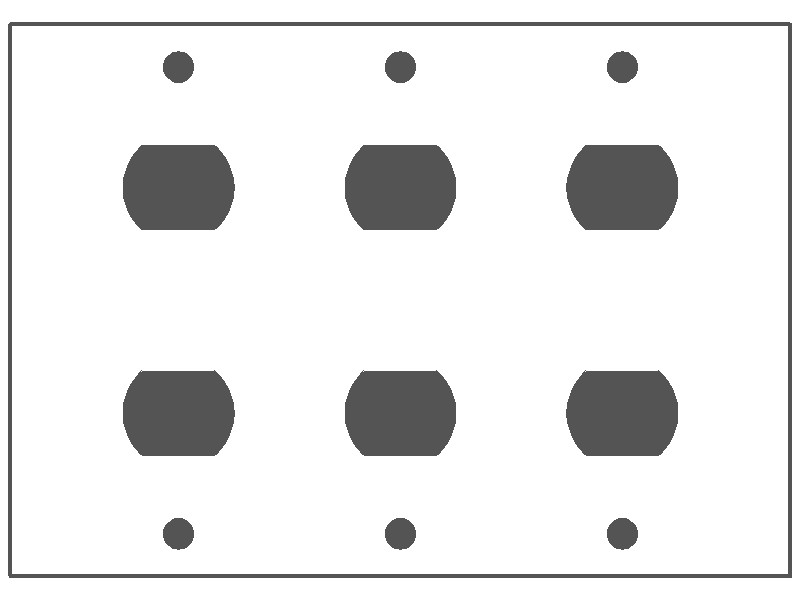

3-gang with (6) interchangeable openings (despard) (2 per gang); holes in a horizontal position, standard size, metallic finish wallplate
Gang: 3
Size: Standard (4.5 in. high x 6.375 in. wide)
Opening: (6) Interchangeable openings (despard) (2 per gang); holes in a horizontal position
Mounting: Interchangeable mounting (3.812 in. between mounting holes)
Additional Information
Product Type: Wallplates
| FINISH | CAT. NO. / UPC |
|---|---|
| Chrome Plate Mirror |
83023X 95327830232.0 |
| Anodized Aluminum-Clear |
95023X 95327950237.0 |
| Stainless Steel-Type 304-Satin |
93023X 95327930239.0 |
| Stainless Steel-Type 304-Mirror |
68023X 95327680233.0 |
| Stainless Steel-Type 304-Satin (.060 in.) |
70023X 95327700238.0 |
| Stainless Steel-Type 430-Satin |
97023X 95327970235.0 |
| Statuary Bronze-Dark |
69023X 95327690232.0 |
| Bank Bronze-Medium |
65023X 95327650236.0 |
| Satin Brass |
94023X 95327940238.0 |
| Satin Brass (.060 in.) |
96023X 95327960236.0 |
| Satin Bronze |
66023X 95327660235.0 |
| Polished Brass-Mirror |
64023X 95327640237.0 |
Material:
Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.
Mechanical:
Gang: 3
Size: Standard (4.5 in. high x 6.375 in. wide)
Size / Shape: Standard
Opening: (6) Interchangeable openings (despard) (2 per gang); holes in a horizontal position
Mounting: Interchangeable mounting (3.812 in. between mounting holes)
Standards:
Applicable Standards: UL 514D
Certification: UL Listed
Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.
Product Features:
- Ideal for restoration projects where despard toggle or outlet receptacles are in use.
- Smooth, rounded edges prevent wall damage.
- Add elegance to any room in your home or office.
- Can be silk-screened or engraved.
- Made in the U.S.A.
Box Quantity: 10
