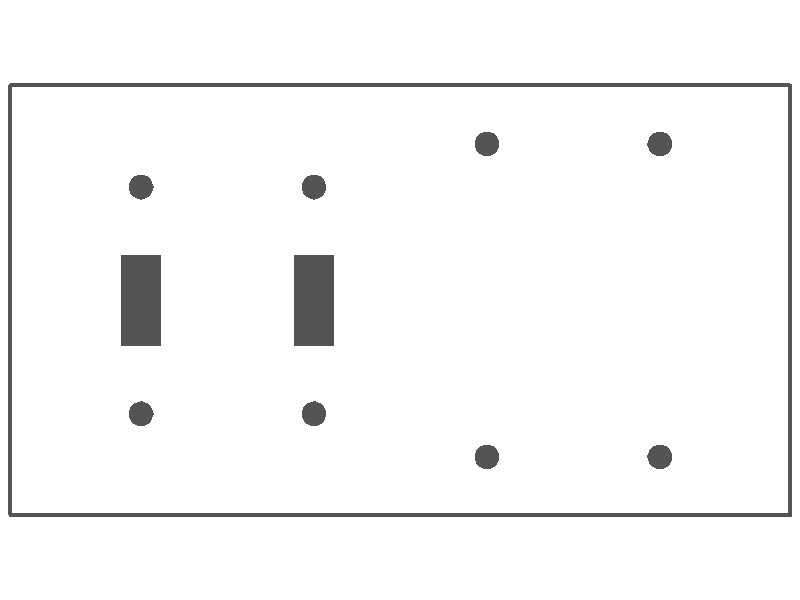

4-gang with (2) toggle (2) blank, standard size, metallic finish wallplate
Gang: 4
Size: Standard (4.5 in. high x 8.187 in. wide)
Opening: (2) toggle and (2) blank
Mounting: (2 Toggle) device mounting (2.375 in. between mounting holes) / (2) Blank) box mounting (3.281 in. between mounting holes)
Additional Information
Product Type: Wallplates
| FINISH | CAT. NO. / UPC |
|---|---|
| Chrome Plate Mirror |
83574 95327835749.0 |
| Anodized Aluminum-Clear |
95574 95327955744.0 |
| Stainless Steel-Type 304-Satin |
93574 95327935746.0 |
| Stainless Steel-Type 304-Mirror |
68574 95327685740.0 |
| Stainless Steel-Type 304-Satin (.060 in.) |
70574 95327705745.0 |
| Stainless Steel-Type 430-Satin |
97574 95327975742.0 |
| Statuary Bronze-Dark |
69574 95327695749.0 |
| Bank Bronze-Medium |
65574 95327655743.0 |
| Satin Brass |
94574 95327945745.0 |
| Satin Brass (.060 in.) |
96574 95327965743.0 |
| Satin Bronze |
66574 95327665742.0 |
| Polished Brass-Mirror |
64574 95327645744.0 |
Material:
Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.
Mechanical:
Gang: 4
Size: Standard (4.5 in. high x 8.187 in. wide)
Size / Shape: Standard
Opening: (2) toggle and (2) blank
Mounting: (2 Toggle) device mounting (2.375 in. between mounting holes) / (2) Blank) box mounting (3.281 in. between mounting holes)
Standards:
Applicable Standards: UL 514D
Certification: UL Listed
Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.
Product Features:
- Ideal for residential, commercial and institutional applications.
- Smooth, rounded edges prevent wall damage.
- Add elegance to any room in your home or office.
- Can be silk-screened or engraved.
- Made in the U.S.A.
Box Quantity: 10
