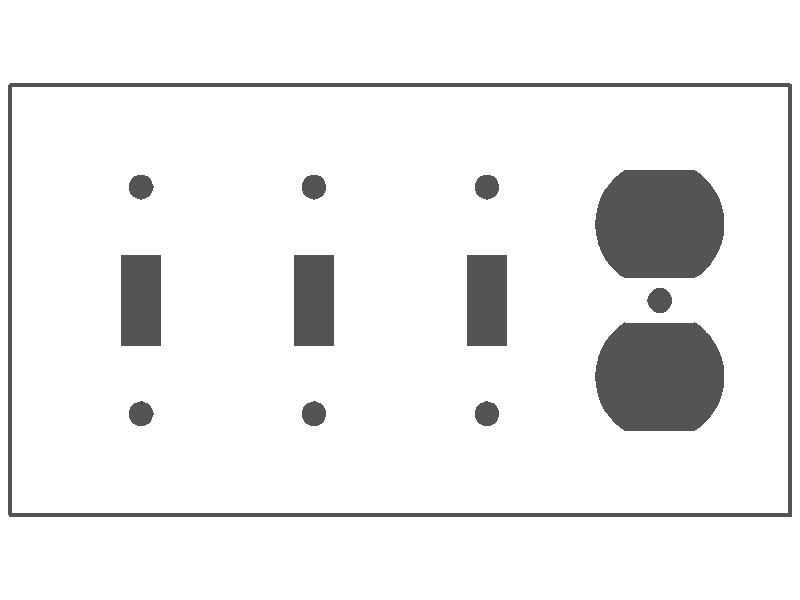

4-gang with (3) toggle (1) duplex, standard size, metallic finish wallplate

Gang: 4
Size: Standard (4.5 in. high x 8.187 in. wide)
Opening: (3) toggle and (1) duplex opening
Mounting: (3 Toggle) device mounting (2.375 in. between mounting holes) / (Duplex) device mounting


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
Chrome Plate Mirror
83554
95327835541.0
Anodized Aluminum-Clear
95554
95327955546.0
Stainless Steel-Type 304-Satin
93554
95327935548.0
Stainless Steel-Type 304-Mirror
68554
95327685542.0
Stainless Steel-Type 304-Satin (.060 in.)
70554
95327705547.0
Stainless Steel-Type 430-Satin
97554
95327975544.0
Statuary Bronze-Dark
69554
95327695541.0
Bank Bronze-Medium
65554
95327655545.0
Satin Brass
94554
95327945547.0
Satin Brass (.060 in.)
96554
95327965545.0
Satin Bronze
66554
95327665544.0
Polished Brass-Mirror
64554
95327645546.0

Material:

Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 4
Size: Standard (4.5 in. high x 8.187 in. wide)
Size / Shape: Standard
Opening: (3) toggle and (1) duplex opening
Mounting: (3 Toggle) device mounting (2.375 in. between mounting holes) / (Duplex) device mounting

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential, commercial and institutional applications.
  • Smooth, rounded edges prevent wall damage.
  • Add elegance to any room in your home or office.
  • Can be silk-screened or engraved.
  • Made in the U.S.A.

Box Quantity: 10
