Additional Information
Product Type: Wallplates
FINISH | CAT. NO. / UPC |
---|---|
Chrome Plate Mirror |
83565 95327835657.0 |
Anodized Aluminum-Clear |
95565 95327955652.0 |
Stainless Steel-Type 304-Satin |
93565 95327935654.0 |
Stainless Steel-Type 304-Mirror |
68565 95327685658.0 |
Stainless Steel-Type 304-Satin (.060 in.) |
70565 95327705653.0 |
Stainless Steel-Type 430-Satin |
97565 95327975650.0 |
Statuary Bronze-Dark |
69565 95327695657.0 |
Bank Bronze-Medium |
65565 95327655651.0 |
Satin Brass |
94565 95327945653.0 |
Satin Brass (.060 in.) |
96565 95327965651.0 |
Satin Bronze |
66565 95327665650.0 |
Polished Brass-Mirror |
64565 95327645652.0 |
Material:
Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.
Mechanical:

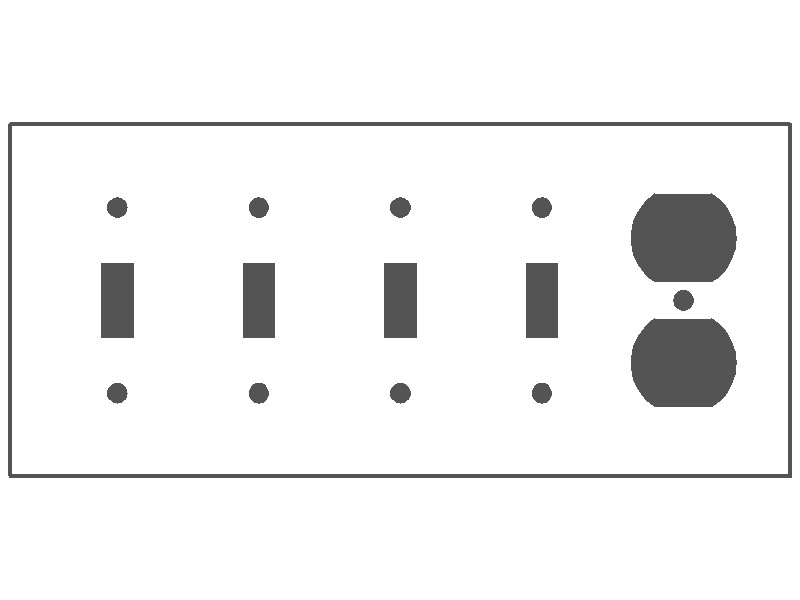

Gang: 5
Size: Standard (4.5 in. high x 10.00 in. wide)
Size / Shape: Standard
Opening: (4) toggle / (1) duplex
Mounting: (4 Toggle) device mounting (2.375 in. between mounting holes) / (Duplex) device mounting
Standards:
Applicable Standards: UL 514D
Certification: UL Listed
Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.
Product Features:
- Ideal for residential, commercial and institutional applications.
- Smooth, rounded edges prevent wall damage.
- Add elegance to any room in your home or office.
- Can be silk-screened or engraved.
- Made in the U.S.A.
Box Quantity: 10
