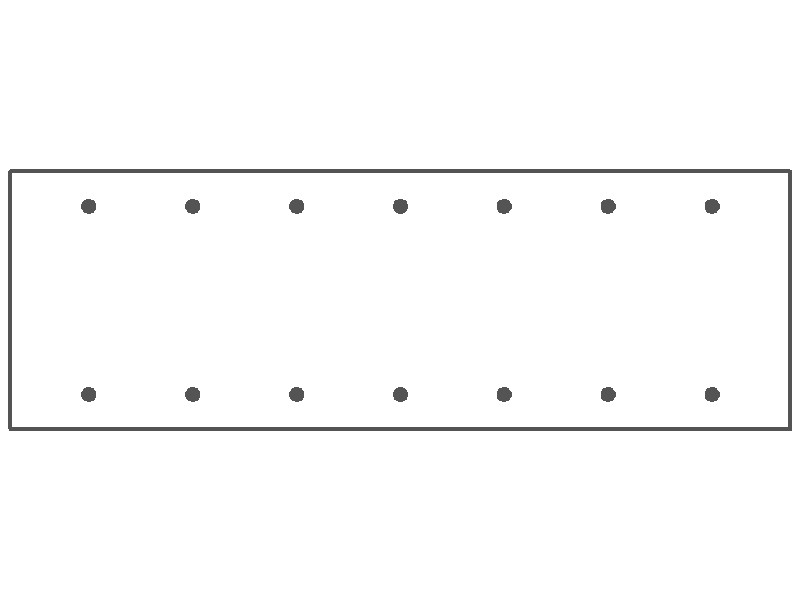

7-gang blank, standard size, metallic finish wallplate

Gang: 7
Size: Standard (4.5 in. high x 13.625 in. wide)
Opening: (7) Blank
Mounting: Box (3.281 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
Chrome Plate Mirror
83157
95327831574.0
Anodized Aluminum-Clear
95157
95327951579.0
Stainless Steel-Type 304-Satin
93157
95327931571.0
Stainless Steel-Type 304-Mirror
68157
95327681575.0
Stainless Steel-Type 430-Satin
97157
95327971577.0
Statuary Bronze-Dark
69157
95327691574.0
Bank Bronze-Medium
65157
95327651578.0
Satin Brass
94157
95327941570.0
Satin Bronze
66157
95327661577.0
Polished Brass-Mirror
64157
95327641579.0

Material:

Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass and in Satin Brass–each measuring .040 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 7
Size: Standard (4.5 in. high x 13.625 in. wide)
Size / Shape: Standard
Opening: (7) Blank
Mounting: Box (3.281 in. between mounting holes)

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (10) ten finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential, commercial and institutional applications.
  • Smooth, rounded edges prevent wall damage.
  • Add elegance to any room in your home or office.
  • Can be silk-screened or engraved.
  • Made in the U.S.A.

Box Quantity: 1
