Additional Information
Product Type: Wallplates
FINISH | CAT. NO. / UPC |
---|---|
Chrome Plate Mirror |
83159 95327831598.0 |
Anodized Aluminum-Clear |
95159 95327951593.0 |
Stainless Steel-Type 304-Satin |
93159 95327931595.0 |
Stainless Steel-Type 304-Mirror |
68159 95327681599.0 |
Stainless Steel-Type 430-Satin |
97159 95327971591.0 |
Statuary Bronze-Dark |
69159 95327691598.0 |
Bank Bronze-Medium |
65159 95327651592.0 |
Satin Brass |
94159 95327941594.0 |
Satin Bronze |
66159 95327661591.0 |
Polished Brass-Mirror |
64159 95327641593.0 |
Material:
Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick. This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass and in Satin Brass–each measuring .040 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.
Mechanical:

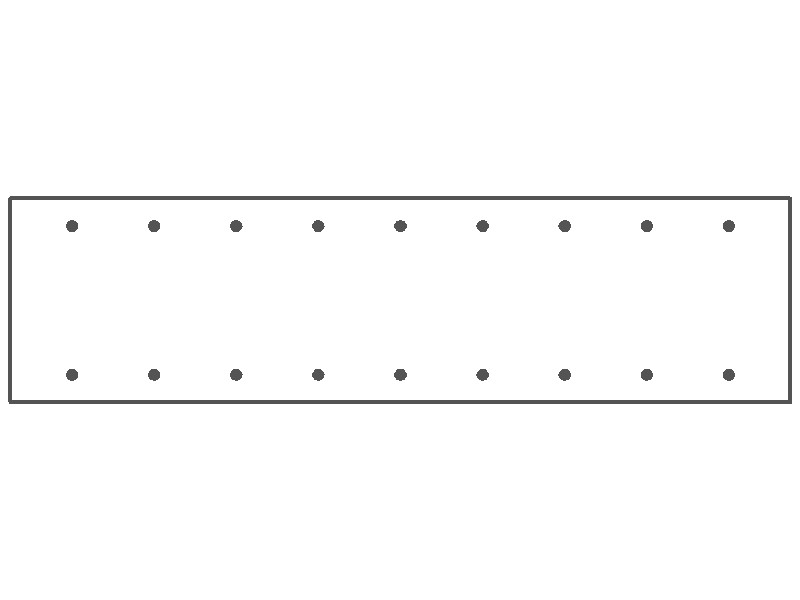

Gang: 9
Size: Standard (4.5 in. high x 17.25 in. wide)
Size / Shape: Standard
Opening: (9) Blank
Mounting: Box (3.281 in. between mounting holes)
Standards:
Applicable Standards: UL 514D
Certification: UL Listed
Finishes: Available in a choice of (10) ten finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.
Product Features:
- Ideal for residential, commercial and institutional applications.
- Smooth, rounded edges prevent wall damage.
- Add elegance to any room in your home or office.
- Can be silk-screened or engraved.
- Made in the U.S.A.
Box Quantity: 1
