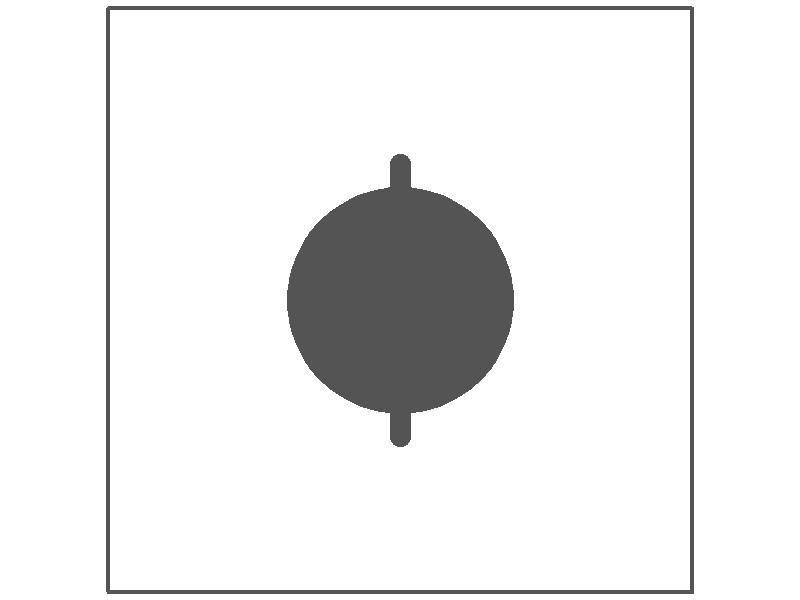

2-gang with 30 / 50 amp 3 wire range dryer receptacle opening (2.125 in. ID hole), oversize, painted metal wallplate

Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Gang: 2
Size: Oversize (5.5 in. high x 5.50 in. wide)
Opening: 30 / 50 amp 3 wire range / dryer receptacle opening (2.125 in. ID hole)
Mounting: Device (2.375 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
White Semi-Gloss
86937
95327869379.0
White Wrinkle
85937
95327859370.0
Ivory Semi-Gloss
84937
95327849371.0
Ivory Wrinkle
99937
95327999373.0
Brown Semi-Gloss
82937
95327829373.0
Brown Wrinkle
98937
95327989374.0

About Us:
Mulberry offers an extensive wallplate selection in 40 materials and finishes–painted metal, stainless steel, brass, bronze, chrome, aluminum, and unbreakable thermoplastic. We make over 7,000 different wallplates, in hundreds of openings and combinations. Most are in stock.

Material:
Construction: Painted metal; cold-rolled steel, 0.030 inches thick

Mechanical:
Gang: 2
Size: Oversize (5.5 in. high x 5.50 in. wide)
Size / Shape: Oversize
Opening: 30 / 50 amp 3 wire range / dryer receptacle opening (2.125 in. ID hole)
Mounting: Device (2.375 in. between mounting holes)

Standards:
Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (6) six powder coat paint finishes. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Oversize wallplates can be used to cover wall surface irregularities–a full inch taller than standard size and wider, as well.
  • Made from the finest steel alloy and painted with a superior powder coat finish to assure durability.
  • Durable finish inhibits oxidation and helps prevent any chipping and scratching.
  • If needed, can later be painted in the field to match a new room décor.
  • Comes with matching screws.
  • Made in the U.S.A.

Box Quantity: 10
