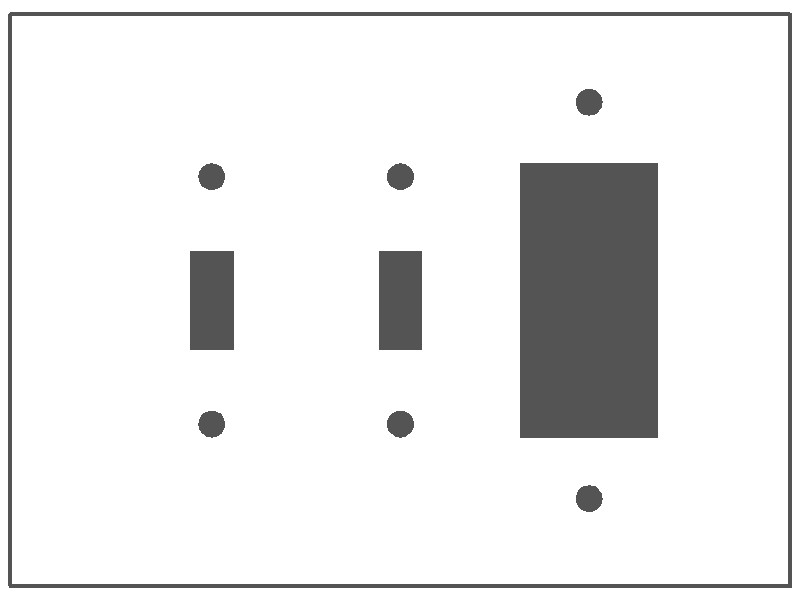

3-gang with (2) toggle (1) GFI, oversize, painted metal wallplate

Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Gang: 3
Size: Oversize (5.5 in. high x 7.50 in. wide)
Opening: (2) toggle switch openings; (1) block duplex / GFI opening
Mounting: (2 Toggle) device mounting (2.375 in. between mounting holes) / (GFI) device mounting (3.812 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
White Semi-Gloss
86883
95327868839.0
White Wrinkle
85883
95327858830.0
Ivory Semi-Gloss
84883
95327848831.0
Ivory Wrinkle
99883
95327998833.0
Brown Semi-Gloss
82883
95327828833.0
Brown Wrinkle
98883
95327988834.0

About Us:
Mulberry offers an extensive wallplate selection in 40 materials and finishes–painted metal, stainless steel, brass, bronze, chrome, aluminum, and unbreakable thermoplastic. We make over 7,000 different wallplates, in hundreds of openings and combinations. Most are in stock.

Material:
Construction: Painted metal; cold-rolled steel, 0.030 inches thick

Mechanical:
Gang: 3
Size: Oversize (5.5 in. high x 7.50 in. wide)
Size / Shape: Oversize
Opening: (2) toggle switch openings; (1) block duplex / GFI opening
Mounting: (2 Toggle) device mounting (2.375 in. between mounting holes) / (GFI) device mounting (3.812 in. between mounting holes)

Standards:
Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (6) six powder coat paint finishes. Comes with both 1/2 inch and 5/16 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Oversize wallplates can be used to cover wall surface irregularities–a full inch taller than standard size and wider, as well.
  • Made from the finest steel alloy and painted with a superior powder coat finish to assure durability.
  • Durable finish inhibits oxidation and helps prevent any chipping and scratching.
  • If needed, can later be painted in the field to match a new room décor.
  • Comes with matching screws.
  • Made in the U.S.A.

Box Quantity: 10
