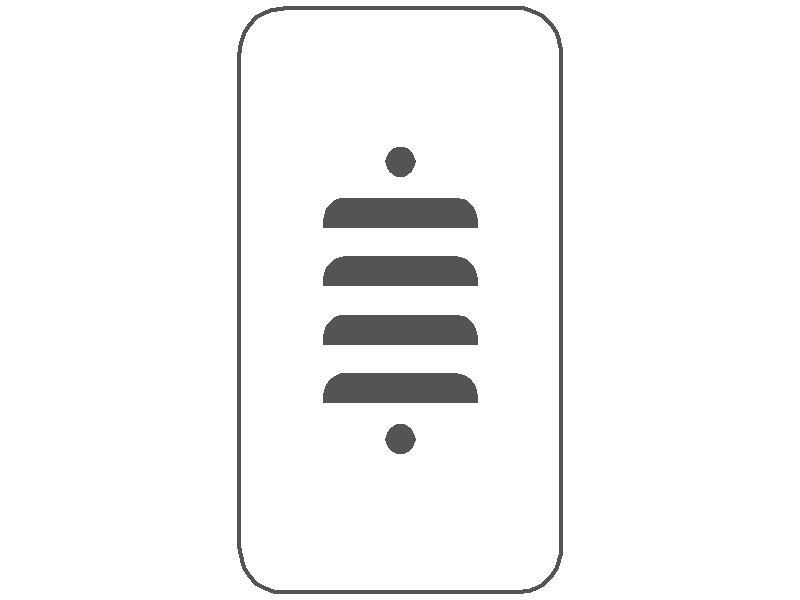

1-gang with louver opening; vertical position, Princess size, painted metal wallplate

Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Gang: 1
Size: Princess (5 in. high x 2.75 in. wide)
Opening: Louver opening; vertical position
Mounting: Device (2.375 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
White Semi-Gloss
76631
95327766319.0
White Wrinkle
75631
95327756310.0
Ivory Semi-Gloss
74631
95327746311.0
Ivory Wrinkle
79631
95327796316.0
Brown Wrinkle
78631
95327786317.0

About Us:
Mulberry offers an extensive wallplate selection in 40 materials and finishes–painted metal, stainless steel, brass, bronze, chrome, aluminum, and unbreakable thermoplastic. We make over 7000 different wallplates, in hundreds of openings and combinations. Most are in stock.

Material:
Construction: Painted metal; cold-rolled steel, 0.030 inches thick

Mechanical:
Gang: 1
Size: Princess (5 in. high x 2.75 in. wide)
Size / Shape: Princess
Opening: Louver opening; vertical position
Mounting: Device (2.375 in. between mounting holes)

Standards:
Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (5) five powder coat paint finishes. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential and commercial applications.
  • Smooth rounded corners offer a distinctive traditional look.
  • 1/2 inch taller in height helps cover any gaps or holes between sheetrock and an existing electrical box.
  • Made from the finest steel alloy and painted with a superior powder coat finish to assure durability.
  • Durable finish inhibits oxidation and helps prevent any chipping and scratching.
  • If needed, can later be painted in the field to match a new room décor.
  • Made in the U.S.A.

Box Quantity: 25
