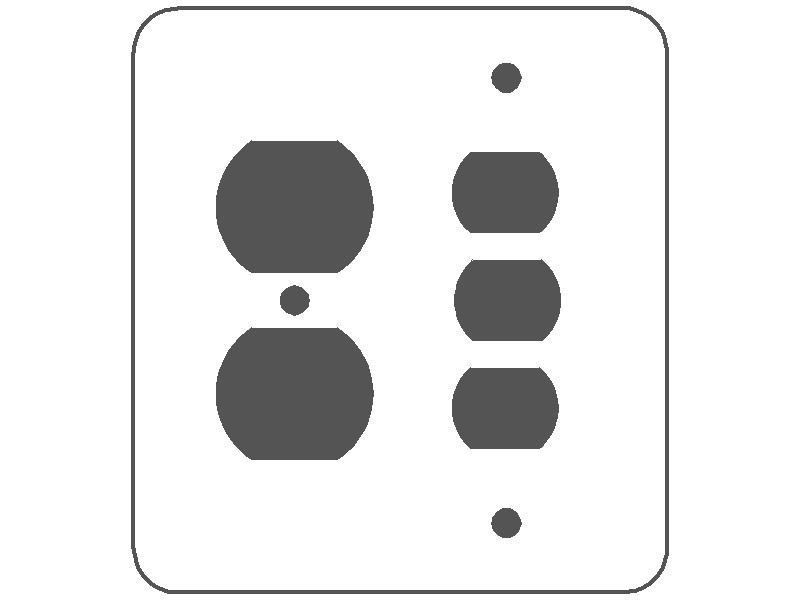

2-gang with duplex opening and (3) Interchangeable openings (holes in a horizontal position), Princess size, painted metal wallplate

Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Gang: 2
Size: Princess (5 in. high x 4.562 in. wide)
Opening: Duplex opening and (3) Interchangeable openings (holes in a horizontal position)
Mounting: (Duplex) device mounting / (Despard) interchangeable mounting (3.812 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
White Semi-Gloss
76172X
95327761727.0
White Wrinkle
75172X
95327751728.0
Ivory Semi-Gloss
74172X
95327741729.0
Ivory Wrinkle
79172X
95327791724.0
Brown Wrinkle
78172X
95327781725.0

About Us:
Mulberry offers an extensive wallplate selection in 40 materials and finishes–painted metal, stainless steel, brass, bronze, chrome, aluminum, and unbreakable thermoplastic. We make over 7000 different wallplates, in hundreds of openings and combinations. Most are in stock.

Material:
Construction: Painted metal; cold-rolled steel, 0.030 inches thick

Mechanical:
Gang: 2
Size: Princess (5 in. high x 4.562 in. wide)
Size / Shape: Princess
Opening: Duplex opening and (3) Interchangeable openings (holes in a horizontal position)
Mounting: (Duplex) device mounting / (Despard) interchangeable mounting (3.812 in. between mounting holes)

Standards:
Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (5) five powder coat paint finishes. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for older homes or restoration projects where despard toggle or outlet receptacles are in use.
  • Smooth rounded corners for a distinctive look.
  • 1/2 inch taller in height helps cover any gaps or holes between sheetrock and an existing electrical box.
  • Made from the finest steel alloy and painted with a superior powder coat finish to assure durability.
  • Durable finish inhibits oxidation and helps prevent any chipping and scratching.
  • If needed, can later be painted in the field to match a new room décor.
  • Made in the U.S.A.

Box Quantity: 10
