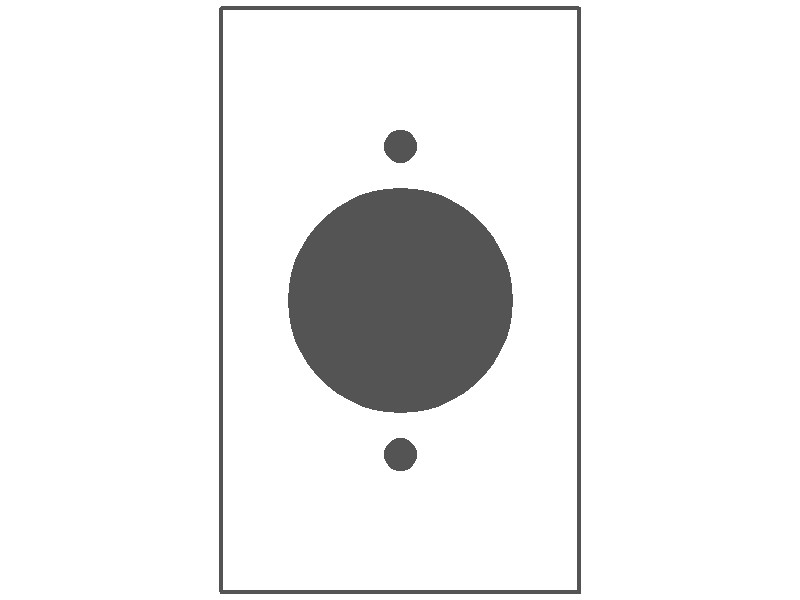

1-gang with 30A 3 & 4 wire TL round receptacle opening (1.730 in. ID), standard size, painted metal wallplate
Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Opening: 30A 3 & 4 wire TL round receptacle opening (1.730 in. ID)
Mounting: Device
Additional Information
Product Type: Wallplates
| FINISH | CAT. NO. / UPC |
|---|---|
| White Semi-Gloss |
86229 95327862295.0 |
| White Wrinkle |
85229 95327852296.0 |
| Ivory Semi-Gloss |
84229 95327842297.0 |
| Ivory Wrinkle |
99229 95327992299.0 |
| Brown Semi-Gloss |
82229 95327822299.0 |
| Brown Wrinkle |
98229 95327982290.0 |
| Black Matte |
87229 95327872294.0 |
| Gray Semi-Gloss |
58229 95327582292.0 |
| Red Semi-Gloss |
51229 95327512299.0 |
| Aluminum Semi-Gloss |
88229 95327882296.0 |
| Zinc Coat (unfinished) |
89229 95327892295.0 |
About Us:
Mulberry offers an extensive wallplate selection in 40 materials and finishes–painted metal, stainless steel, brass, bronze, chrome, aluminum, and unbreakable thermoplastic. We make over 7,000 different wallplates, in hundreds of openings and combinations. Most are in stock.
Material:
Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Mechanical:
Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Size / Shape: Standard
Opening: 30A 3 & 4 wire TL round receptacle opening (1.730 in. ID)
Mounting: Device
Standards:
Applicable Standards: UL 514D
Certification: UL Listed
Finishes: Available in a choice of (10) ten powder coat paint finishes; (1) one unfinished. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.
Product Features:
- Ideal for residential and commercial applications.
- Made from the finest steel alloy and painted with a superior powder coat finish to assure durability.
- Durable finish inhibits oxidation and helps prevent any chipping and scratching.
- If needed, can later be painted in the field to match a new room décor.
- Comes with matching screws.
- Made in the U.S.A.
Box Quantity: 25
