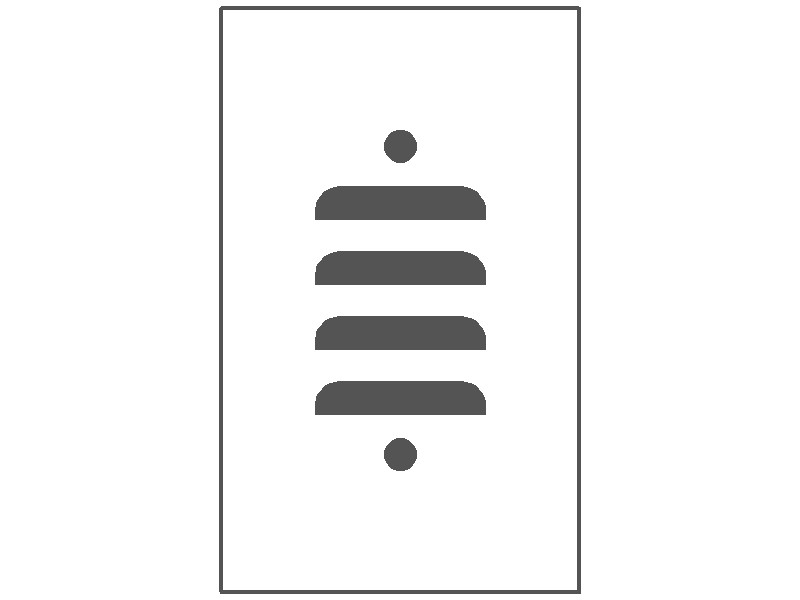

1-gang with louver opening; vertical position, standard size, painted metal wallplate

Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Opening: Louver opening; vertical position
Mounting: Device mounting (2.375 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
White Semi-Gloss
86631
95327866316.0
White Wrinkle
85631
95327856317.0
Ivory Semi-Gloss
84631
95327846318.0
Ivory Wrinkle
99631
95327996310.0
Brown Semi-Gloss
82631
95327826310.0
Brown Wrinkle
98631
95327986311.0
Almond Semi-Gloss
44631
95327446310.0
Black Matte
87631
95327876315.0
Gray Semi-Gloss
58631
95327586313.0
Red Semi-Gloss
51631
95327516310.0
Aluminum Semi-Gloss
88631
95327886314.0
Zinc Coat (unfinished)
89631
95327896313.0

About Us:
Mulberry offers an extensive wallplate selection in 40 materials and finishes–painted metal, stainless steel, brass, bronze, chrome, aluminum, and unbreakable thermoplastic. We make over 7,000 different wallplates, in hundreds of openings and combinations. Most are in stock.

Material:
Construction: Painted metal; cold-rolled steel, 0.030 inches thick

Mechanical:
Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Size / Shape: Standard
Opening: Louver opening; vertical position
Mounting: Device mounting (2.375 in. between mounting holes)

Standards:
Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (11) eleven powder coat paint finishes; (1) one unfinished. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential and commercial applications.
  • Often used to cover lighting along indoor stairways and walkways.
  • Made from the finest steel alloy and painted with a superior powder coat finish to assure durability.
  • If needed, can later be painted in the field to match a new room décor.
  • Comes with matching screws.
  • Made in the U.S.A.

Box Quantity: 15
