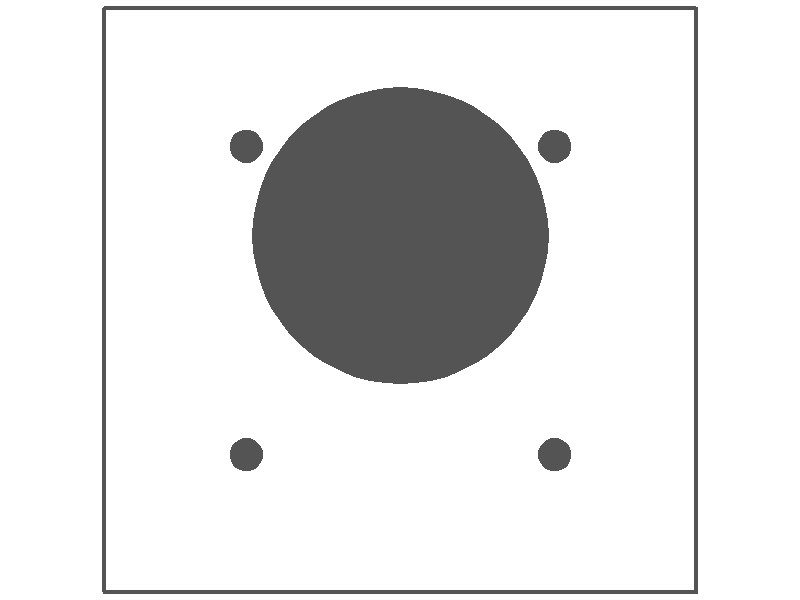

2-gang with 30/50/60A 4 wire round receptacle opening (2.275 in. ID), offset, standard size, painted metal wallplate

Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Gang: 2
Size: Standard (4.5 in. high x 4.562 in. wide)
Opening: 30/50/60A 4 wire round receptacle opening (2.275 in. ID), offset
Mounting: Device


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
White Semi-Gloss
86226
95327862264.0
White Wrinkle
85226
95327852265.0
Ivory Semi-Gloss
84226
95327842266.0
Ivory Wrinkle
99226
95327992268.0
Brown Semi-Gloss
82226
95327822268.0
Brown Wrinkle
98226
95327982269.0
Black Matte
87226
95327872263.0
Gray Semi-Gloss
58226
95327582261.0
Red Semi-Gloss
51226
95327512268.0
Aluminum Semi-Gloss
88226
95327882262.0
Zinc Coat (unfinished)
89226
95327892261.0

About Us:
Mulberry offers an extensive wallplate selection in 40 materials and finishes–painted metal, stainless steel, brass, bronze, chrome, aluminum, and unbreakable thermoplastic. We make over 7,000 different wallplates, in hundreds of openings and combinations. Most are in stock.

Material:
Construction: Painted metal; cold-rolled steel, 0.030 inches thick

Mechanical:
Gang: 2
Size: Standard (4.5 in. high x 4.562 in. wide)
Size / Shape: Standard
Opening: 30/50/60A 4 wire round receptacle opening (2.275 in. ID), offset
Mounting: Device

Standards:
Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (10) ten powder coat paint finishes; (1) one unfinished. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential and commercial applications.
  • Made from the finest steel alloy and painted with a superior powder coat finish to assure durability.
  • Durable finish inhibits oxidation and helps prevent any chipping and scratching.
  • If needed, can later be painted in the field to match a new room décor.
  • Comes with matching screws.
  • Made in the U.S.A.

Box Quantity: 10
