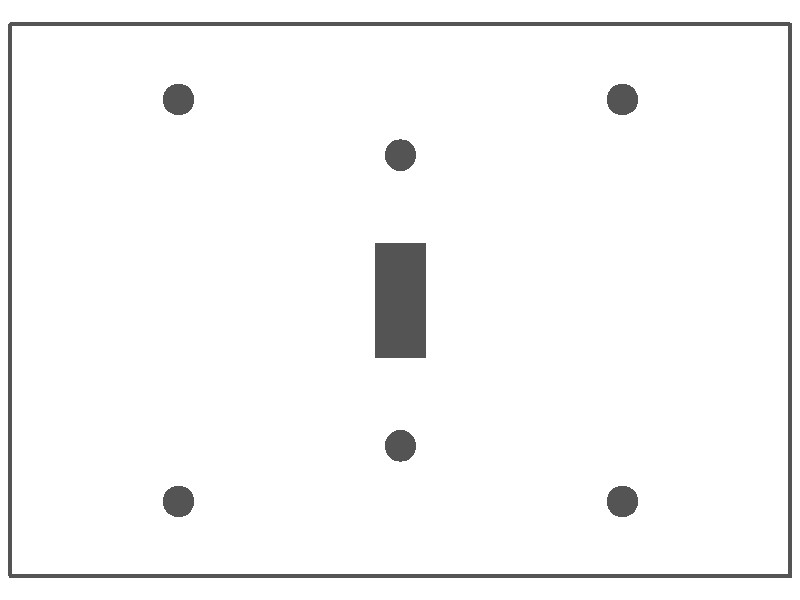

3-gang with (1) blank (1) toggle (1) blank, standard size, painted metal wallplate

Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Gang: 3
Size: Standard (4.5 in. high x 6.375 in. wide)
Opening: (1) blank (1) toggle (1) blank
Mounting: (Blank) box mounting (3.281 in. between mounting holes) / (Toggle) device mounting (2.375 in. between mounting holes) / (Blank) box mounting (3.281 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
White Semi-Gloss
86173
95327861731.0
Ivory Semi-Gloss
99173
95327991735.0
Ivory Wrinkle
98173
95327981736.0

About Us:
Mulberry offers an extensive wallplate selection in 40 materials and finishes–painted metal, stainless steel, brass, bronze, chrome, aluminum, and unbreakable thermoplastic. We make over 7,000 different wallplates, in hundreds of openings and combinations. Most are in stock.

Material:
Construction: Painted metal; cold-rolled steel, 0.030 inches thick

Mechanical:
Gang: 3
Size: Standard (4.5 in. high x 6.375 in. wide)
Size / Shape: Standard
Opening: (1) blank (1) toggle (1) blank
Mounting: (Blank) box mounting (3.281 in. between mounting holes) / (Toggle) device mounting (2.375 in. between mounting holes) / (Blank) box mounting (3.281 in. between mounting holes)

Standards:
Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (3) three powder coat paint finishes. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential and commercial applications.
  • Made from the finest steel alloy and painted with a superior powder coat finish to assure durability.
  • Durable finish inhibits oxidation and helps prevent any chipping and scratching.
  • If needed, can later be painted in the field to match a new room décor.
  • Comes with matching screws.
  • Made in the U.S.A.

Box Quantity: 10
