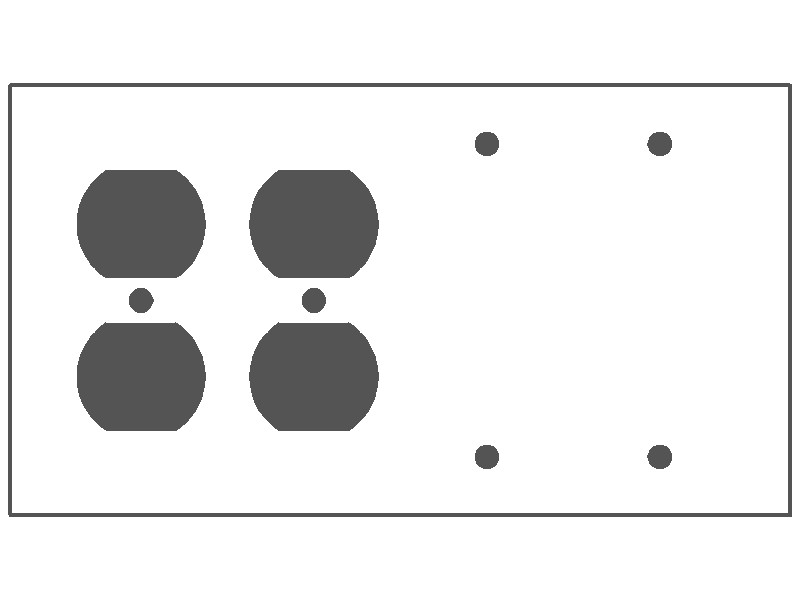

4-gang with (2) duplex (2) blank, standard size, painted metal wallplate

Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Gang: 4
Size: Standard (4.5 in. high x 8.187 in. wide)
Opening: (2) duplex / (2) blank
Mounting: (2 Duplex) device mntg. / (2 Blank) box mntg. (3.281 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
White Semi-Gloss
86164
95327861649.0
White Wrinkle
85164
95327851640.0
Ivory Semi-Gloss
84164
95327841641.0
Ivory Wrinkle
99164
95327991643.0
Brown Semi-Gloss
82164
95327821643.0
Brown Wrinkle
98164
95327981644.0
Black Matte
87164
95327871648.0
Gray Semi-Gloss
58164
95327581646.0
Red Semi-Gloss
51164
95327511643.0
Aluminum Semi-Gloss
88164
95327881647.0
Zinc Coat (unfinished)
89164
95327891646.0

About Us:
Mulberry offers an extensive wallplate selection in 40 materials and finishes–painted metal, stainless steel, brass, bronze, chrome, aluminum, and unbreakable thermoplastic. We make over 7,000 different wallplates, in hundreds of openings and combinations. Most are in stock.

Material:
Construction: Painted metal; cold-rolled steel, 0.030 inches thick

Mechanical:
Gang: 4
Size: Standard (4.5 in. high x 8.187 in. wide)
Size / Shape: Standard
Opening: (2) duplex / (2) blank
Mounting: (2 Duplex) device mntg. / (2 Blank) box mntg. (3.281 in. between mounting holes)

Standards:
Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (10) ten powder coat paint finishes; (1) one unfinished. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential and commercial applications.
  • Made from the finest steel alloy and painted with a superior powder coat finish to assure durability.
  • Durable finish inhibits oxidation and helps prevent any chipping and scratching.
  • If needed, can later be painted in the field to match a new room décor.
  • Comes with matching screws.
  • Made in the U.S.A.

Box Quantity: 10
