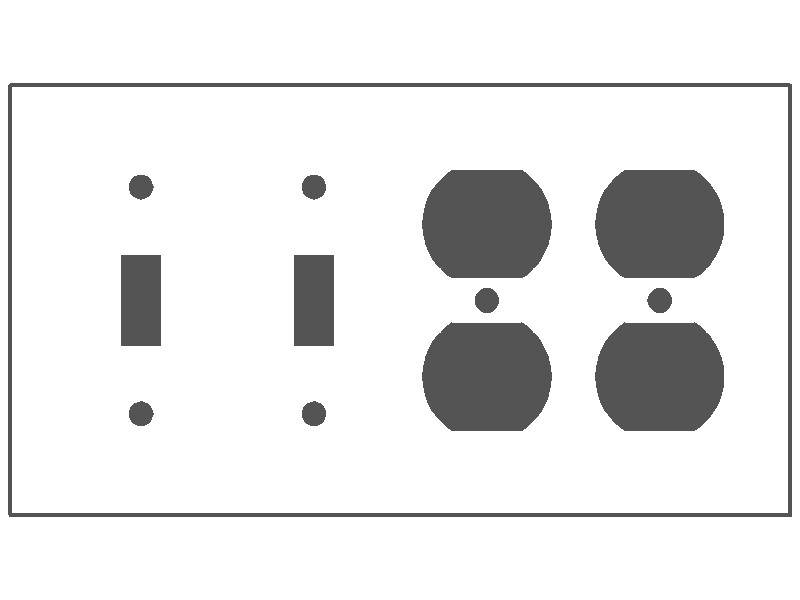

4-gang with (2) toggle (2) duplex, standard size, painted metal wallplate

Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Gang: 4
Size: Standard (4.5 in. high x 8.187 in. wide)
Opening: (2) toggle and (2) duplex openings
Mounting: (2 Toggle) device mounting (2.375 in. between mounting holes) / (2 Duplex) device mounting


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
White Semi-Gloss
86564
95327865647.0
White Wrinkle
85564
95327855648.0
Ivory Semi-Gloss
84564
95327845649.0
Ivory Wrinkle
99564
95327995641.0
Brown Semi-Gloss
82564
95327825641.0
Brown Wrinkle
98564
95327985642.0
Black Matte
87564
95327875646.0
Gray Semi-Gloss
58564
95327585644.0
Red Semi-Gloss
51564
95327515641.0
Aluminum Semi-Gloss
88564
95327885645.0
Zinc Coat (unfinished)
89564
95327895644.0

About Us:
Mulberry offers an extensive wallplate selection in 40 materials and finishes–painted metal, stainless steel, brass, bronze, chrome, aluminum, and unbreakable thermoplastic. We make over 7,000 different wallplates, in hundreds of openings and combinations. Most are in stock.

Material:
Construction: Painted metal; cold-rolled steel, 0.030 inches thick

Mechanical:
Gang: 4
Size: Standard (4.5 in. high x 8.187 in. wide)
Size / Shape: Standard
Opening: (2) toggle and (2) duplex openings
Mounting: (2 Toggle) device mounting (2.375 in. between mounting holes) / (2 Duplex) device mounting

Standards:
Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (10) ten powder coat paint finishes; (1) one unfinished. Comes with 1/12 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential and commercial applications.
  • Made from the finest steel alloy and painted with a superior powder coat finish to assure durability.
  • Durable finish inhibits oxidation and helps prevent any chipping and scratching.
  • If needed, can later be painted in the field to match a new room décor.
  • Comes with matching screws.
  • Made in the U.S.A.

Box Quantity: 10
