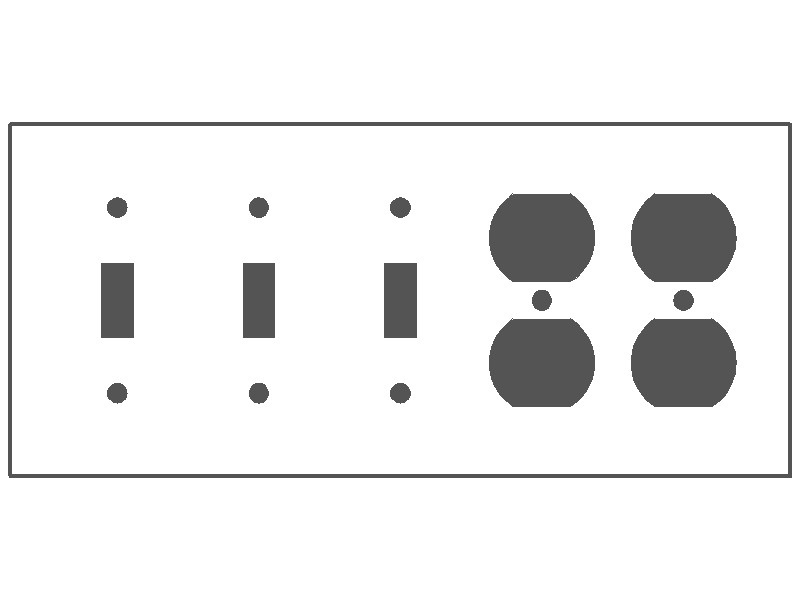

5-gang with (3) toggle (2) duplex, standard size, painted metal wallplate

Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Gang: 5
Size: Standard (4.5 in. high x 10.00 in. wide)
Opening: (3) toggle / (2) duplex
Mounting: (3 Toggle) device mounting (2.375 in. between mounting holes) / (2 Duplex) device mounting


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
White Semi-Gloss
86575
95327865753.0
White Wrinkle
85575
95327855754.0
Ivory Semi-Gloss
84575
95327845755.0
Ivory Wrinkle
99575
95327995757.0
Brown Semi-Gloss
82575
95327825757.0
Brown Wrinkle
98575
95327985758.0
Black Matte
87575
95327875752.0
Gray Semi-Gloss
58575
95327585750.0
Red Semi-Gloss
51575
95327515757.0
Aluminum Semi-Gloss
88575
95327885751.0
Zinc Coat (unfinished)
89575
95327895750.0

About Us:
Mulberry offers an extensive wallplate selection in 40 materials and finishes–painted metal, stainless steel, brass, bronze, chrome, aluminum, and unbreakable thermoplastic. We make over 7,000 different wallplates, in hundreds of openings and combinations. Most are in stock.

Material:
Construction: Painted metal; cold-rolled steel, 0.030 inches thick

Mechanical:
Gang: 5
Size: Standard (4.5 in. high x 10.00 in. wide)
Size / Shape: Standard
Opening: (3) toggle / (2) duplex
Mounting: (3 Toggle) device mounting (2.375 in. between mounting holes) / (2 Duplex) device mounting

Standards:
Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (10) ten powder coat paint finishes; (1) one unfinished. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential and commercial applications.
  • Made from the finest steel alloy and painted with a superior powder coat finish to assure durability.
  • Durable finish inhibits oxidation and helps prevent any chipping and scratching.
  • If needed, can later be painted in the field to match a new room décor.
  • Comes with matching screws.
  • Made in the U.S.A.

Box Quantity: 10
