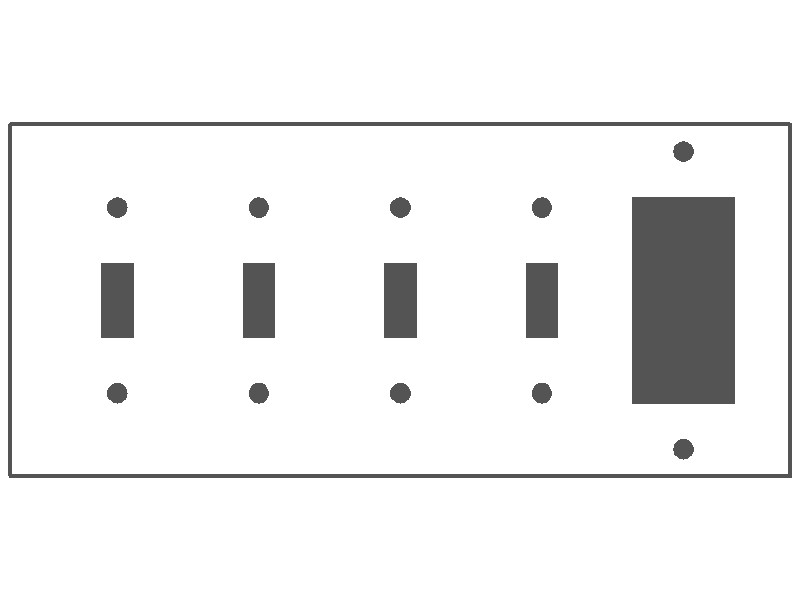

5-gang with (4) toggle (1) GFI, standard size, painted metal wallplate

Construction: Painted metal; cold-rolled steel, 0.030 inches thick
Gang: 5
Size: Standard (4.5 in. high x 10.00 in. wide)
Opening: (4) toggle / (1) block duplex / GFI
Mounting: (4 Toggle) device mounting (2.375 in. between mounting holes) / (GFI) device mounting (3.812 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
White Semi-Gloss
86465
95327864657.0
White Wrinkle
85465
95327854658.0
Ivory Semi-Gloss
84465
95327844659.0
Ivory Wrinkle
99465
95327994651.0
Brown Semi-Gloss
82465
95327824651.0
Brown Wrinkle
98465
95327984652.0
Black Matte
87465
95327874656.0
Gray Semi-Gloss
58465
95327584654.0
Red Semi-Gloss
51465
95327514651.0
Aluminum Semi-Gloss
88465
95327884655.0
Zinc Coat (unfinished)
89465
95327894654.0

About Us:
Mulberry offers an extensive wallplate selection in 40 materials and finishes–painted metal, stainless steel, brass, bronze, chrome, aluminum, and unbreakable thermoplastic. We make over 7,000 different wallplates, in hundreds of openings and combinations. Most are in stock.

Material:
Construction: Painted metal; cold-rolled steel, 0.030 inches thick

Mechanical:
Gang: 5
Size: Standard (4.5 in. high x 10.00 in. wide)
Size / Shape: Standard
Opening: (4) toggle / (1) block duplex / GFI
Mounting: (4 Toggle) device mounting (2.375 in. between mounting holes) / (GFI) device mounting (3.812 in. between mounting holes)

Standards:
Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (10) ten powder coat paint finishes; (1) one unfinished. Comes with both 1/2 inch and 5/16 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential and commercial applications.
  • Made from the finest steel alloy and painted with a superior powder coat finish to assure durability.
  • Durable finish inhibits oxidation and helps prevent any chipping and scratching.
  • If needed, can later be painted in the field to match a new room décor.
  • Comes with matching screws.
  • Made in the U.S.A.

Box Quantity: 10
