1-Gang Weatherproof Box with Three 3/4 inch outlets – 1 in each end, 1 in back
Category: Weatherproof boxes
Application: For use in branch circuit wiring in wet, damp or dry locations. May be used as a weatherproof junction box or as a housing for various devices.
Material: Die-cast aluminum, .094 inches thick
Additional Information
Product Type: Weatherproof Boxes
| FINISH | CAT. NO. / UPC |
|---|---|
| Gray without attached mounting lugs |
30204 UPC UPC 095327302043 |
| White without attached mounting lugs |
30204W UPC UPC 095327310321 |
| Bronze without attached mounting lugs |
30204Z UPC UPC 095327310338 |
| Gray with attached mounting lugs |
30206 UPC UPC 095327302067 |
| White with attached mounting lugs |
30206W UPC UPC 095327310369 |
| Bronze with attached mounting lugs |
30206Z UPC UPC 095327310376 |
Category: Weatherproof boxes
Application: For use in branch circuit wiring in wet, damp or dry locations. May be used as a weatherproof junction box or as a housing for various devices.
Material: Die-cast aluminum, .094 inches thick
Gang: 1

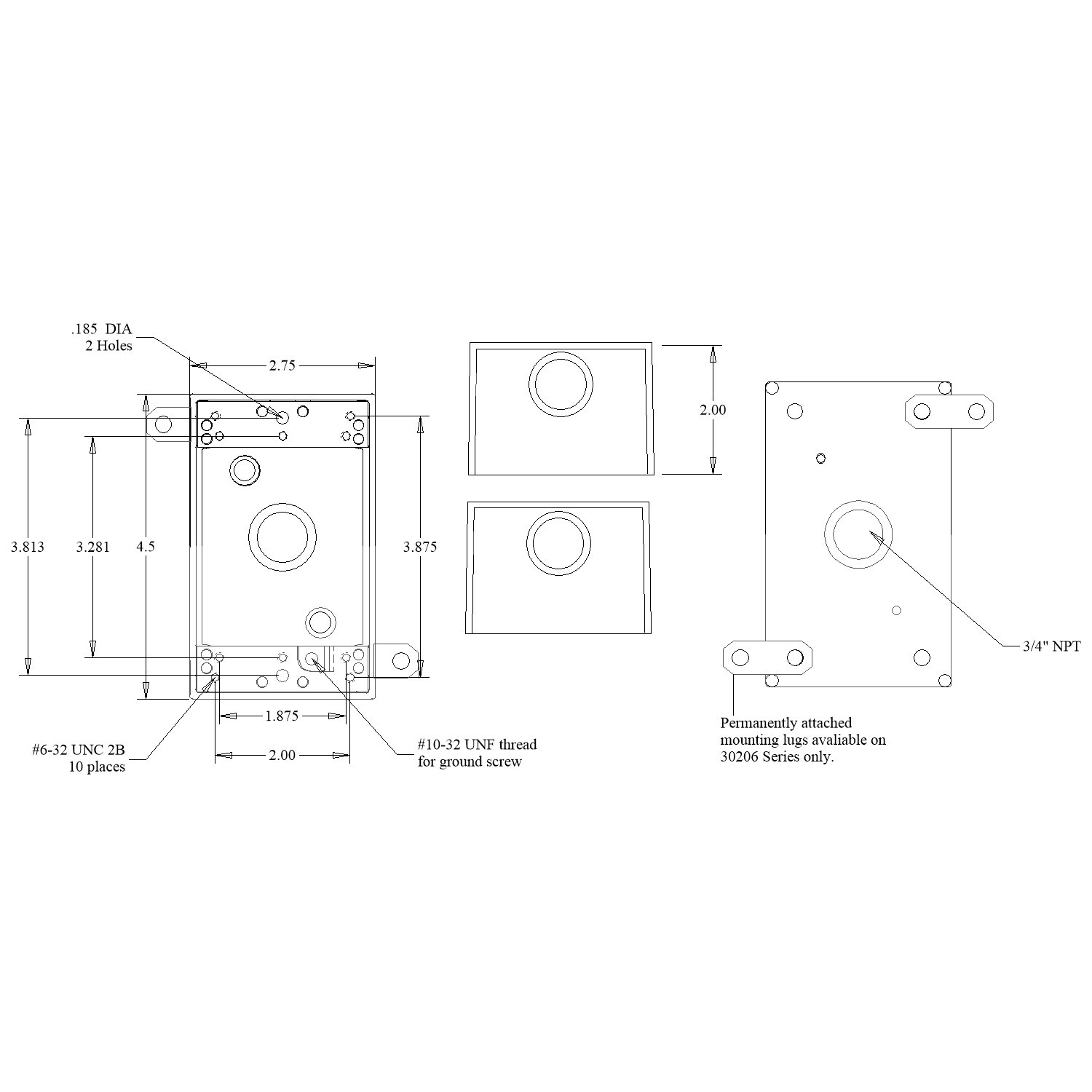

Dimensions: 2.75 inches wide x 4.5 inches high x 2 inches deep
Number of Outlets: (3) three threaded outlets
Hub Size: 3/4 inch
Outlet Locations: 1 in each end, 1 in back
Cubic Capacity: 18.3 inches
Finishes: State-of-the-art powder coat paint finish. Available in gray, white or bronze.
Applicable Standards : UL Standard 514A, NEMA 3R Rated
Certification: UL Listed
Product Features:
- Permanently attached lugs rotate for maximum versatility (30206 only)
- Heavy-duty mounting straps exceed all applicable UL pull-tests.
- Easy access ground screw hole located along the surface of the mounting strap
- Superior powder coat paint finish assures maximum weatherability and scratch resistance
- Ground screw and closure plugs included
- Manufactured in the USA
Packaging: Individually packaged (shrink wrapped and bar coded)
Box Quantity: 25 pcs.
