1-Gang Weatherproof Box with Four 1/2 inch outlets – 2 in each end, 1 in the other, 1 in back
Category: Weatherproof boxes
Application: For use in branch circuit wiring in wet, damp or dry locations. May be used as a weatherproof junction box or as a housing for various devices.
Material: Die-cast aluminum, .094 inches thick
Additional Information
Product Type: Weatherproof Boxes
| FINISH | CAT. NO. / UPC |
|---|---|
| Gray without mounting lugs |
30207 UPC UPC 095327302074 |
| White without mounting lugs |
30207W UPC UPC 095327310406 |
| Bronze without mounting lugs |
30207Z UPC UPC 095327310413 |
| Gray with attached mounting lugs |
30209 UPC UPC 095327302098 |
| White with attached mounting lugs |
30209W UPC UPC 095327310444 |
| Bronze With attached mounting lugs |
30209Z UPC UPC 095327310451 |
Category: Weatherproof boxes
Application: For use in branch circuit wiring in wet, damp or dry locations. May be used as a weatherproof junction box or as a housing for various devices.
Material: Die-cast aluminum, .094 inches thick
Gang: 1

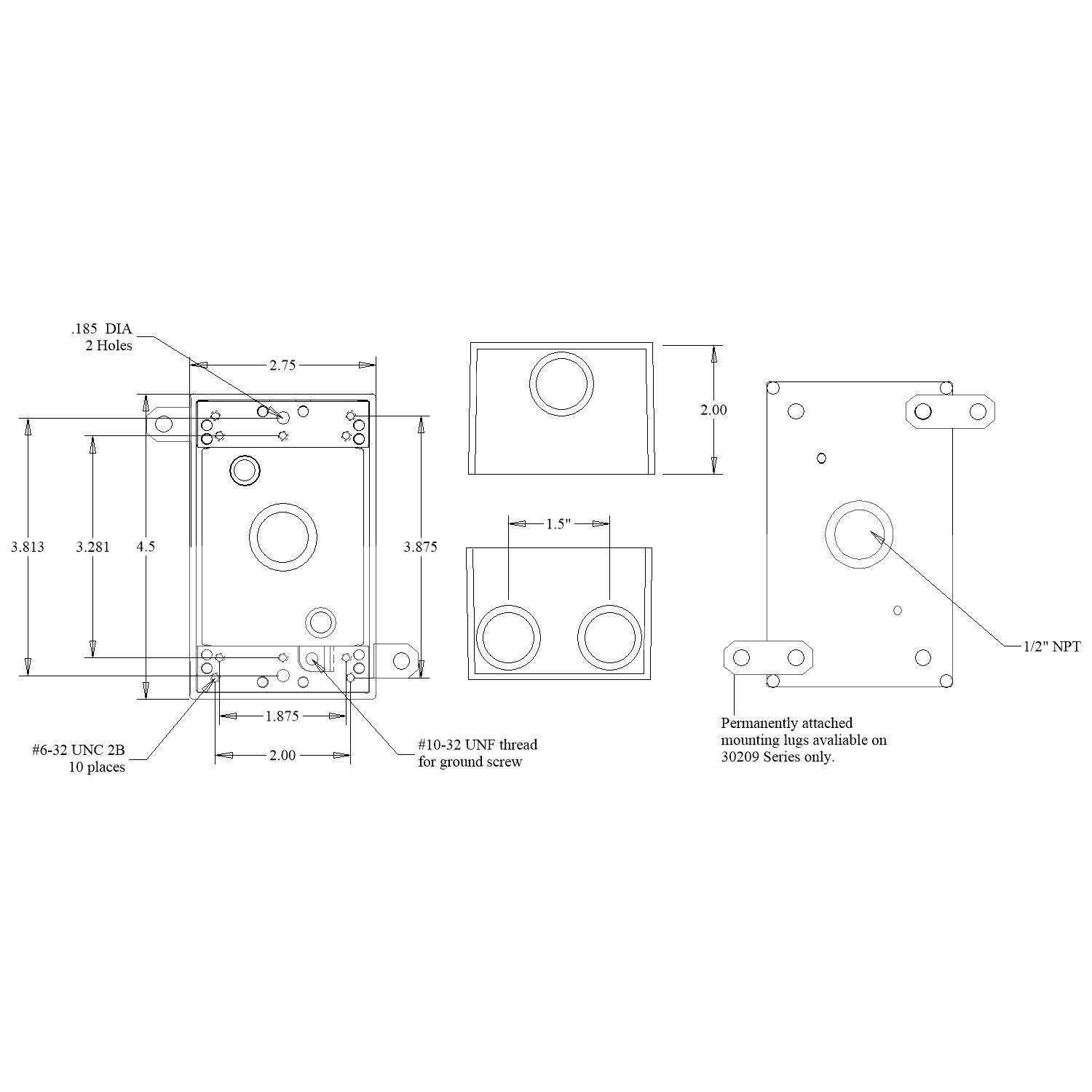

Dimensions: 2.75 inches wide x 4.5 inches high x 2 inches deep
Number of Outlets: (4) 1/2 threaded outlets
Hub Size: 1/2 inch
Outlet Locations: 2 in each end, 1 in the other, 1 in back
Cubic Capacity: 18 inches
Finishes: State-of-the-art powder coat paint finish. Available in gray, white or bronze..
Application Standard: UL Standard 514A, NEMA 3R Rated
Certification: UL Listed
Product Features:
- Permanently attached lugs rotate for maximum versatility (30209 Series only).
- Heavy-duty mounting straps exceed all applicable UL pull-tests.
- Easy access ground screw hole located along the surface of the mounting strap.
- Superior powder coat paint finish assures maximum weatherability and scratch resistance.
- Ground screw and closure plugs included.
Packaging: Individually packaged (shrink wrapped and bar coded)
Box Quantity: 25 pcs.
