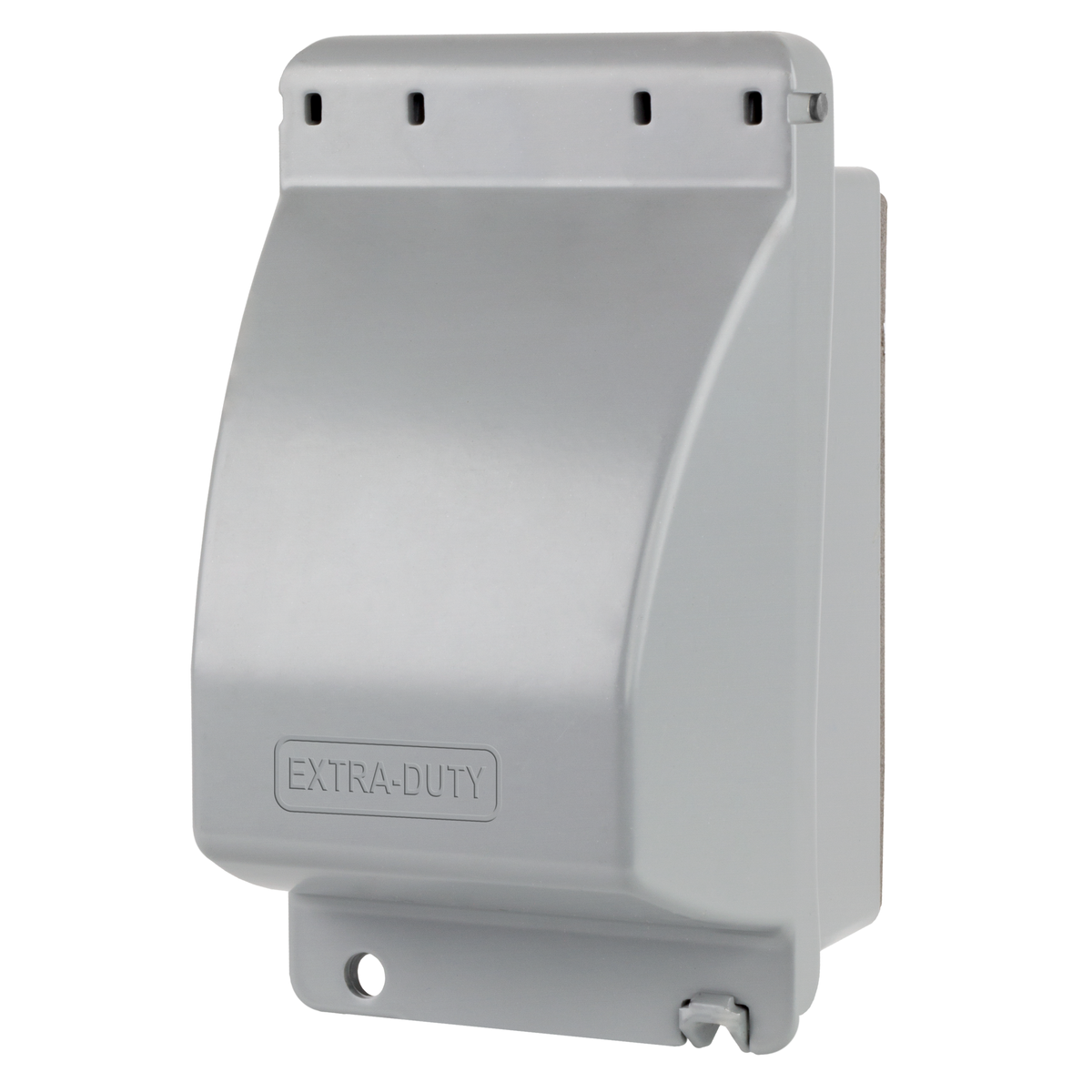

1-gang die-cast extra duty in-use cover, vertical
Category: Extra-Duty rated In-Use Covers
Application: Protects receptacles, switches and plugs in dry, damp or wet locations while they are in use.
Material: Die-cast aluminum
Additional Information
Product Type: Weatherproof Boxes
| FINISH | CAT. NO. / UPC |
|---|---|
| GRAY |
30985 UPC UPC 095327309851 |
Category: Extra-Duty rated In-Use Covers
Application: Protects receptacles, switches and plugs in dry, damp or wet locations while they are in use.
Material: Die-cast aluminum
Mechanical:
Gang: 1
Openings: Duplex, GFI, toggle and seven round openings: 1-1/8 in., 1-1/4 in., 1-3/8 in., 1-9/16 in., 1-5/8 in., 1-11/16 in. and 2-1/8 in.
Orientation: Vertical
Depth: 3-1/2 inches
Mounting: box or device
Finishes: Gray
Applicable Standards: NEC 2017 –Article 406.9 (A) & (B)(1) Extra Duty
Certifications: c-UL-us
Product Features:
- Rugged die-cast aluminum.
- Meets or exceeds all NEC requirements for an ‘Extra Duty’ rating.
- NEMA 3R Rated
- Three snap-in inserts provide multiple device openings.
- Lockable cover; lock hasp measures 1/4 inch in inner diameter.
- Includes an attached gasket and mounting hardware.
Packaging: Individually packaged (shrink wrapped and bar coded)
Box Quantity: 6 pcs.
