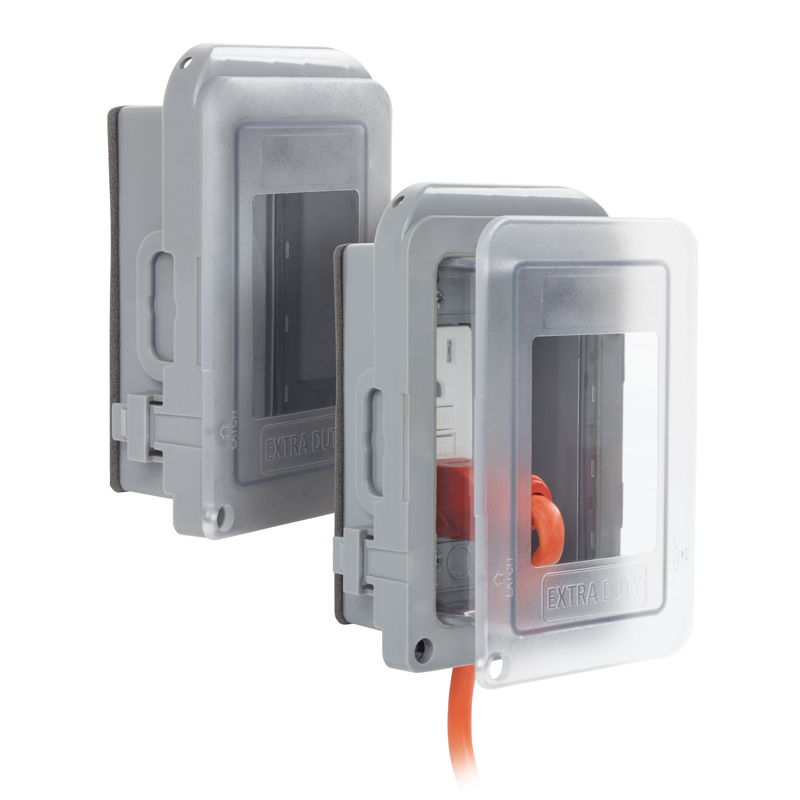

1-gang, expandable, plastic
Category: Extra Duty rated in-Use covers
Application: Protects receptacles, switches and plugs in dry, damp or wet locations while they are in use.
Material: High impact polycarbonate
Additional Information
Product Type: Weatherproof Boxes
| FINISH | CAT. NO. / UPC |
|---|---|
| CLEAR / GRAY BASE |
30983G UPC UPC 095327309233 |
| CLEAR / WHITE BASE |
30983W UPC UPC 095327309240 |
| CLEAR / BRONZE BASE |
30983Z UPC UPC 095327309257 |
Category: Extra Duty rated in-Use covers
Application: Protects receptacles, switches and plugs in dry, damp or wet locations while they are in use.
Material: High impact polycarbonate
Gang: 1
Openings: Duplex, GFI, toggle and seven round openings: 1-1/8 in., 1-1/4 in., 1-3/8 in., 1-9/16 in., 1-5/8 in., 1-11/16 in. and 2-1/8 in.
Orientation: Horizontal or vertical
Depth: Expands from 1-3/4 inches to 3 inches
Mounting: box or device
Finishes: Choice of a gray base with a clear lid, white with a clear lid or bronze with clear lid.
Applicable Standards: NEC 2017 –Article 406.9 (A) & (B)(1) Extra Duty
Certification: c-UL-us
Product Features:
- Made of durable UV stabilized, high-impact polycarbonate.
- Meets or exceeds all NEC requirements for an ‘Extra Duty’ rating.
- NEMA 3R Rated.
- Can be mounted horizontally of vertically.
- Three snap-in inserts provide multiple device openings.
- Lockable cover; lock hasp measures 1/4 inch in inner diameter.
- Includes an attached gasket and mounting hardware.
Packaging: Individually packaged (shrink wrapped and bar coded)
Box Quantity: 8 pcs.
