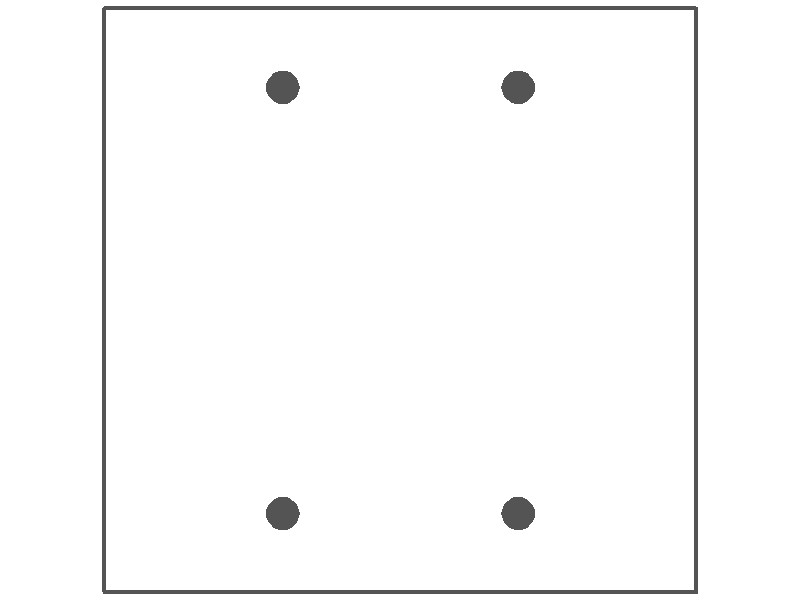

2-gang blank, standard size, metallic finish wallplate

Gang: 2
Size: Standard (4.5 in. high x 4.562 in. wide)
Opening: (2) Blank
Mounting: Box (3.281 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
Chrome Plate Mirror
83152
95327831529.0
Anodized Aluminum-Clear
95152
95327951524.0
Stainless Steel-Type 304-Satin
93152
95327931526.0
Stainless Steel-Type 304-Mirror
68152
95327681520.0
Stainless Steel-Type 304-Satin (.060 in.)
70152
95327701525.0
Stainless Steel-Type 430-Satin
97152
95327971522.0
Statuary Bronze-Dark
69152
95327691529.0
Bank Bronze-Medium
65152
95327651523.0
Satin Brass
94152
95327941525.0
Satin Brass (.060 in.)
96152
95327961523.0
Satin Bronze
66152
95327661522.0
Polished Brass-Mirror
64152
95327641524.0

Material:

Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 2
Size: Standard (4.5 in. high x 4.562 in. wide)
Size / Shape: Standard
Opening: (2) Blank
Mounting: Box (3.281 in. between mounting holes)

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential, commercial and institutional applications.
  • Smooth, rounded edges prevent wall damage.
  • Add elegance to any room in your home or office.
  • Can be silk-screened or engraved.
  • Made in the U.S.A.

Box Quantity: 10
