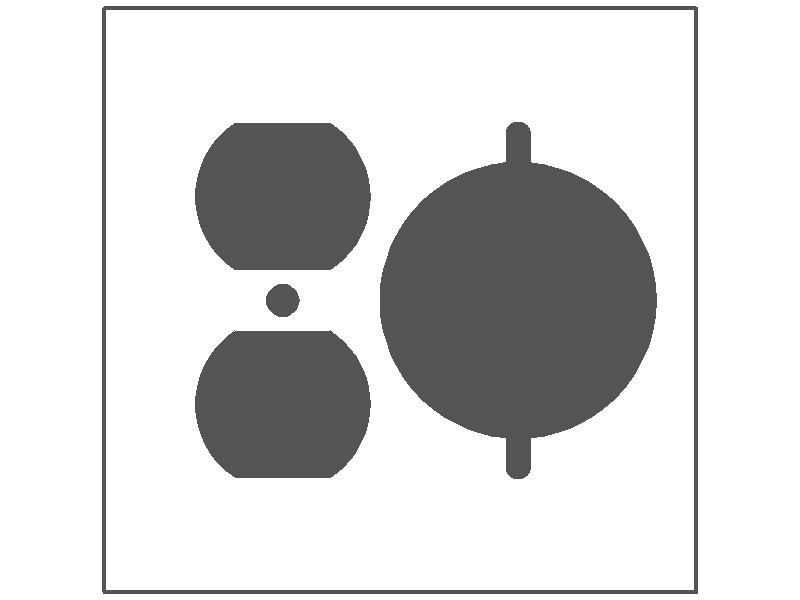

2-gang with (1) duplex (1) 30 amp range / dryer receptacle opening (2.125 in. ID), standard size, metallic finish wallplate

Gang: 2
Size: Standard (4.5 in. high x 4.562 in. wide)
Opening: Duplex and 30 amp TL range / dryer receptacle opening (2.125 in. ID)
Mounting: Device


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
Chrome Plate Mirror
83180
95327831802.0
Anodized Aluminum-Clear
95180
95327951807.0
Stainless Steel-Type 304-Satin
93180
95327931809.0
Stainless Steel-Type 304-Mirror
68180
95327681803.0
Stainless Steel-Type 304-Satin (.060 in.)
70180
95327701808.0
Stainless Steel-Type 430-Satin
97180
95327971805.0
Statuary Bronze-Dark
69180
95327691802.0
Bank Bronze-Medium
65180
95327651806.0
Satin Brass
94180
95327941808.0
Satin Brass (.060 in.)
96180
95327961806.0
Satin Bronze
66180
95327661805.0
Polished Brass-Mirror
64180
95327641807.0

Material:

Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 2
Size: Standard (4.5 in. high x 4.562 in. wide)
Size / Shape: Standard
Opening: Duplex and 30 amp TL range / dryer receptacle opening (2.125 in. ID)
Mounting: Device

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential, commercial and institutional applications.
  • Smooth, rounded edges prevent wall damage.
  • Add elegance to any room in your home or office.
  • Can be silk-screened or engraved.
  • Made in the U.S.A.

Box Quantity: 10
