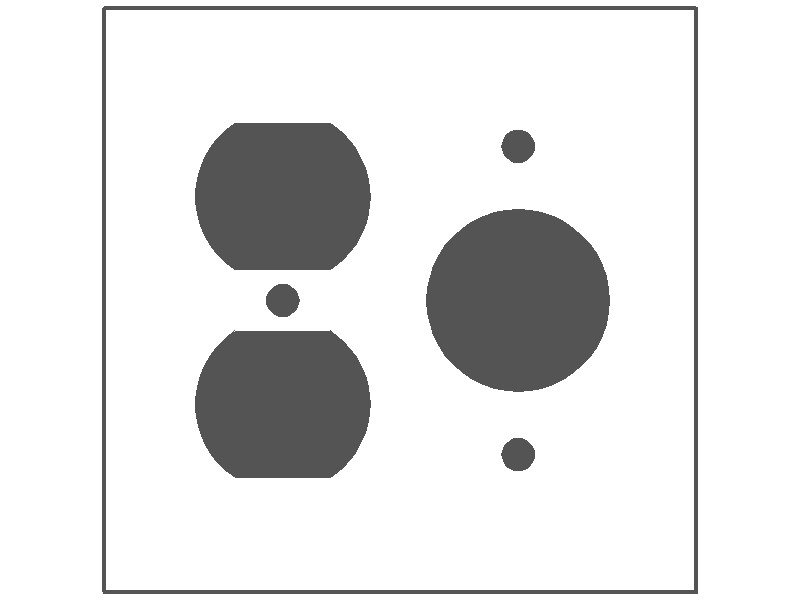

2-gang with (1) duplex (1) single receptacle opening (1.405 in. ID), standard size, metallic finish wallplate
Gang: 2
Size: Standard (4.5 in. high x 4.562 in. wide)
Opening: Duplex / single receptacle opening (1.405 in. ID)
Mounting: (Duplex) device mounting / (Single Receptacle) device mounting (2.375 in. between mounting holes)
Additional Information
Product Type: Wallplates
| FINISH | CAT. NO. / UPC |
|---|---|
| Chrome Plate Mirror |
83572 95327835725.0 |
| Anodized Aluminum-Clear |
95572 95327955720.0 |
| Stainless Steel-Type 304-Satin |
93572 95327935722.0 |
| Stainless Steel-Type 304-Mirror |
68572 95327685726.0 |
| Stainless Steel-Type 304-Satin (.060 in.) |
70572 95327705721.0 |
| Stainless Steel-Type 430-Satin |
97572 95327975728.0 |
| Statuary Bronze-Dark |
69572 95327695725.0 |
| Bank Bronze-Medium |
65572 95327655729.0 |
| Satin Brass |
94572 95327945721.0 |
| Satin Brass (.060 in.) |
96572 95327965729.0 |
| Satin Bronze |
66572 95327665728.0 |
| Polished Brass-Mirror |
64572 95327645720.0 |
Material:
Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.
Mechanical:
Gang: 2
Size: Standard (4.5 in. high x 4.562 in. wide)
Size / Shape: Standard
Opening: Duplex / single receptacle opening (1.405 in. ID)
Mounting: (Duplex) device mounting / (Single Receptacle) device mounting (2.375 in. between mounting holes)
Standards:
Applicable Standards: UL 514D
Certification: UL Listed
Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.
Product Features:
- Ideal for residential, commercial and institutional applications.
- Smooth, rounded edges prevent wall damage.
- Add elegance to any room in your home or office.
- Can be silk-screened or engraved.
- Made in the U.S.A.
Box Quantity: 10
