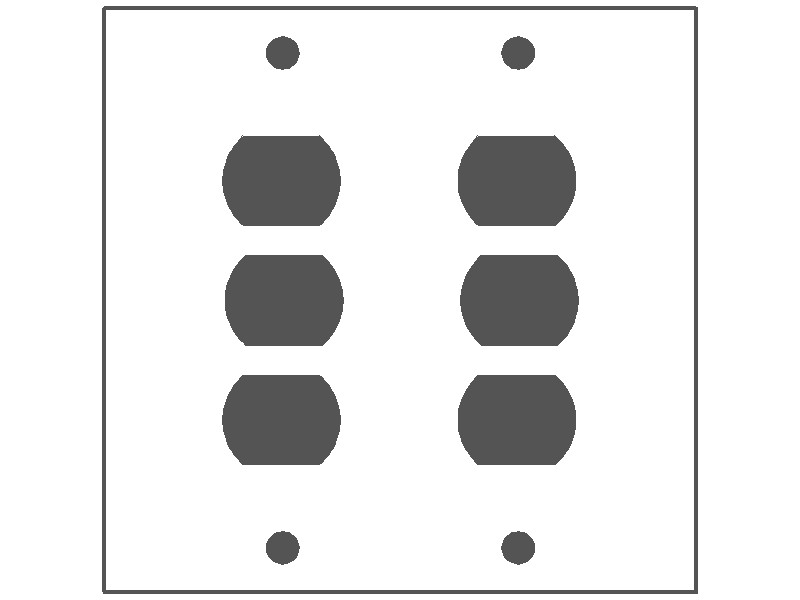

2-gang with (6) interchangeable openings (despard) (3 per gang); holes in a horizontal position, standard size, metallic finish wallplate
Gang: 2
Size: Standard (4.5 in. high x 4.562 in. wide)
Opening: (6) Interchangeable openings (despard) (3 per gang); holes in a horizontal position
Mounting: Interchangeable mounting (3.812 in. between mounting holes)
Additional Information
Product Type: Wallplates
| FINISH | CAT. NO. / UPC |
|---|---|
| Chrome Plate Mirror |
83032X 95327830324.0 |
| Anodized Aluminum-Clear |
95032X 95327950329.0 |
| Stainless Steel-Type 304-Satin |
93032X 95327930321.0 |
| Stainless Steel-Type 304-Mirror |
68032X 95327680325.0 |
| Stainless Steel-Type 304-Satin (.060 in.) |
70032X 95327700320.0 |
| Stainless Steel-Type 430-Satin |
97032X 95327970327.0 |
| Statuary Bronze-Dark |
69032X 95327690324.0 |
| Bank Bronze-Medium |
65032X 95327650328.0 |
| Satin Brass |
94032X 95327940320.0 |
| Satin Brass (.060 in.) |
96032X 95327960328.0 |
| Satin Bronze |
66032X 95327660327.0 |
| Polished Brass-Mirror |
64032X 95327640329.0 |
Material:
Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.
Mechanical:
Gang: 2
Size: Standard (4.5 in. high x 4.562 in. wide)
Size / Shape: Standard
Opening: (6) Interchangeable openings (despard) (3 per gang); holes in a horizontal position
Mounting: Interchangeable mounting (3.812 in. between mounting holes)
Standards:
Applicable Standards: UL 514D
Certification: UL Listed
Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.
Product Features:
- Ideal for restoration projects where despard toggle or outlet receptacles are in use.
- Smooth, rounded edges prevent wall damage.
- Add elegance to any room in your home or office.
- Can be silk-screened or engraved.
- Made in the U.S.A.
Box Quantity: 10
