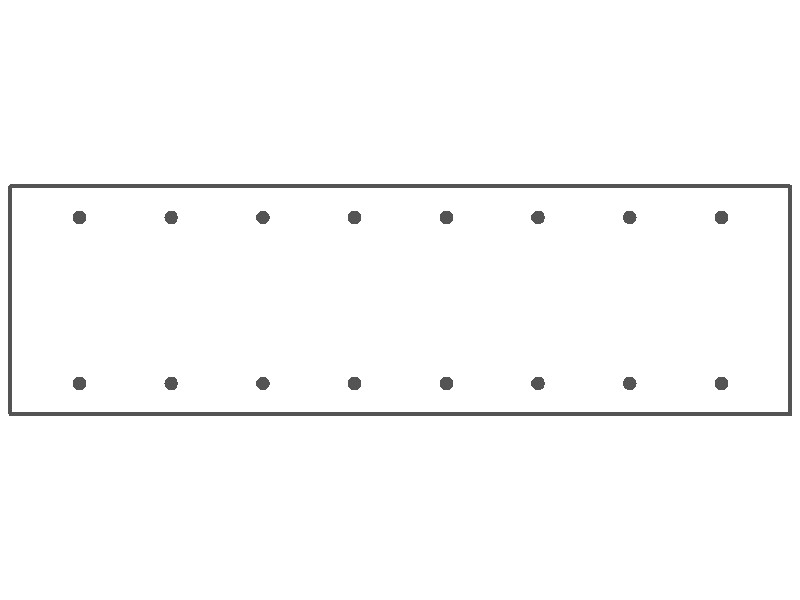

8-gang blank, standard size, metallic finish wallplate

Gang: 8
Size: Standard (4.5 in. high x 15.437 in. wide)
Opening: (8) Blank
Mounting: Box (3.281 in. between mounting holes)


Additional Information

Product Type: Wallplates

FINISH CAT. NO. / UPC
Chrome Plate Mirror
83158
95327831581.0
Anodized Aluminum-Clear
95158
95327951586.0
Stainless Steel-Type 304-Satin
93158
95327931588.0
Stainless Steel-Type 304-Mirror
68158
95327681582.0
Stainless Steel-Type 430-Satin
97158
95327971584.0
Statuary Bronze-Dark
69158
95327691581.0
Bank Bronze-Medium
65158
95327651585.0
Satin Brass
94158
95327941587.0
Satin Bronze
66158
95327661584.0
Polished Brass-Mirror
64158
95327641586.0

Material:

Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick. This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass and in Satin Brass–each measuring .040 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 8
Size: Standard (4.5 in. high x 15.437 in. wide)
Size / Shape: Standard
Opening: (8) Blank
Mounting: Box (3.281 in. between mounting holes)

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (10) ten finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

  • Ideal for residential, commercial and institutional applications.
  • Smooth, rounded edges prevent wall damage.
  • Add elegance to any room in your home or office.
  • Can be silk-screened or engraved.
  • Made in the U.S.A.

Box Quantity: 1
